Power Seat Switch: Testing and Inspection
POWER SEAT SWITCHINSPECTION
1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

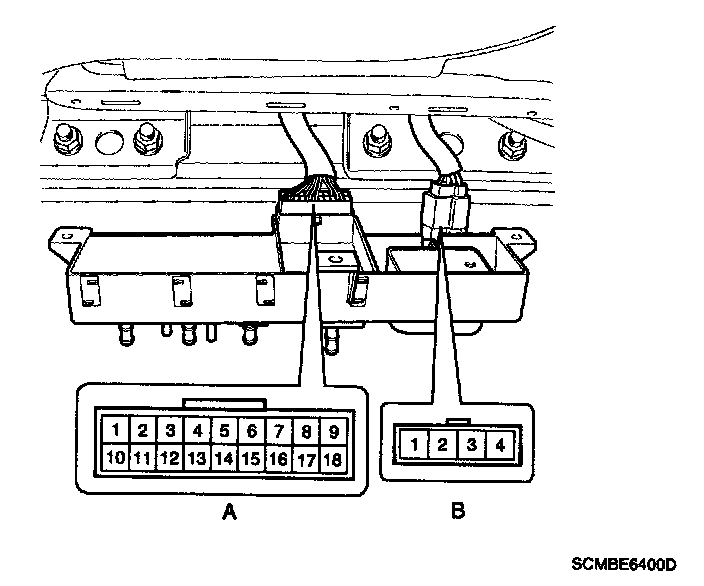

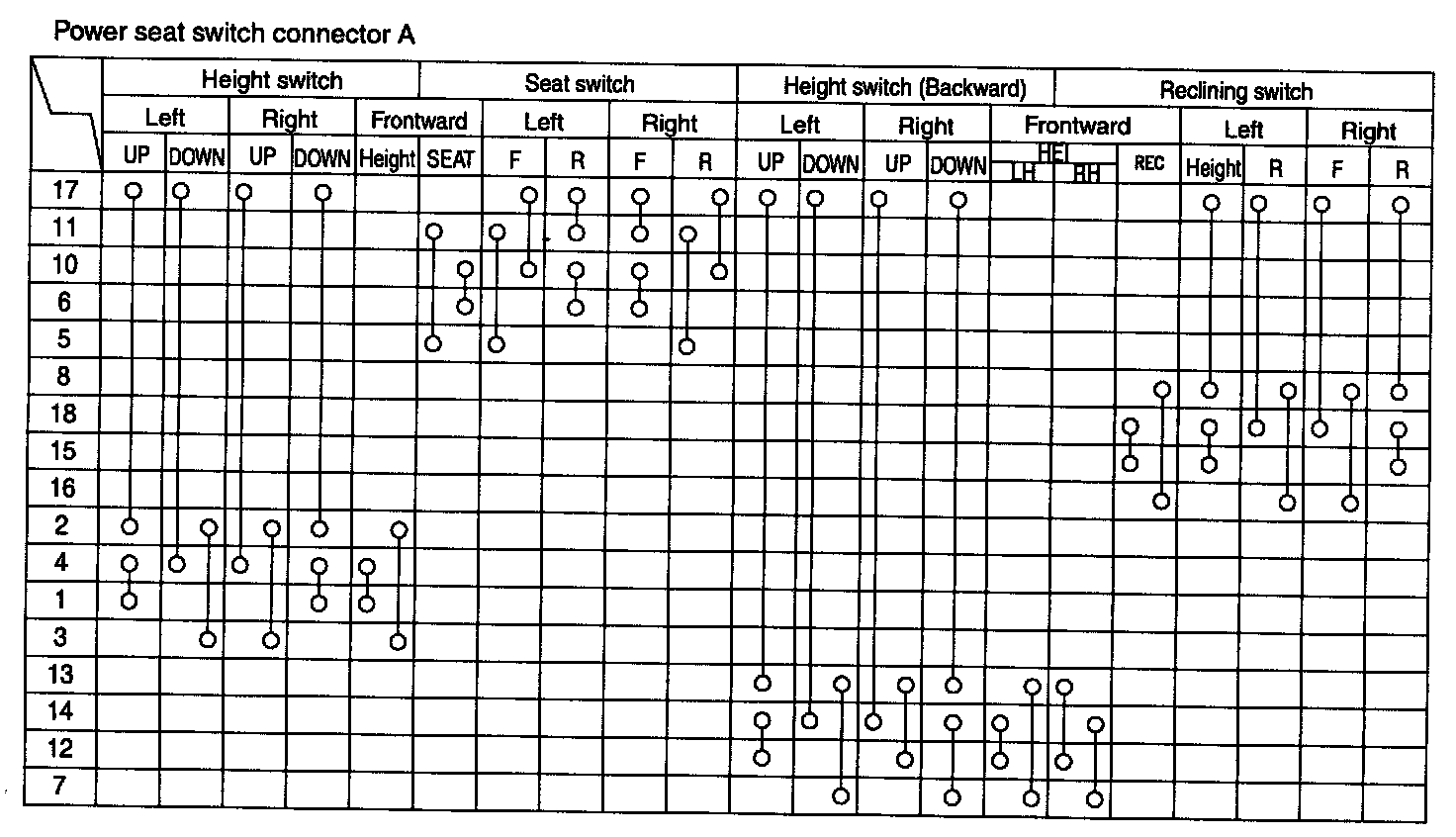

Power Seat Switch Connector A:

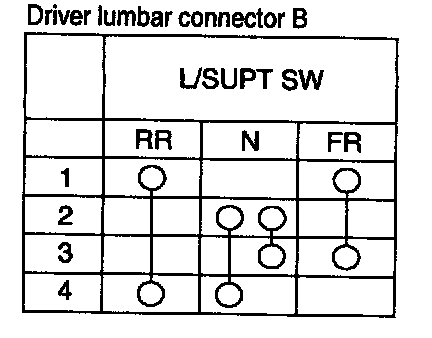

Driver Lumbar Connector B:
