Cowl: Service and Repair

Replacement

Cowl Top Cover Replacement
1. Remove the wiperarm.

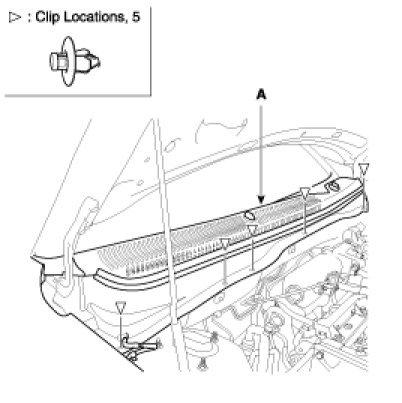

2. Disconnecting the hood weatherstrip(A), remove the cowl top cover(B).

3. Installation is the reverse of removal.
