Drive Belt: Adjustments

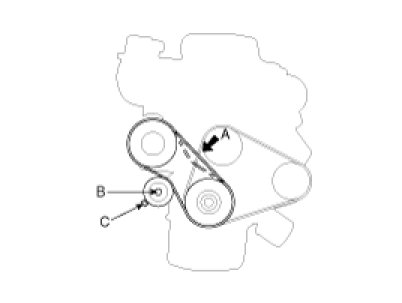

Adjustment 1.
Loosen the tension mounting bolt (B).
2.
Turn the adjusting bolt (C) to obtain the proper belt tension, and then retighten the mounting bolt (B).
3.
Recheck the deflection of the A/C compressor belt.
NOTE: Do not adjustment the
drive belt of Diesel engine.
Refer to EM group in case of Diesel engine.
