Restraints and Safety Systems: Locations

Components

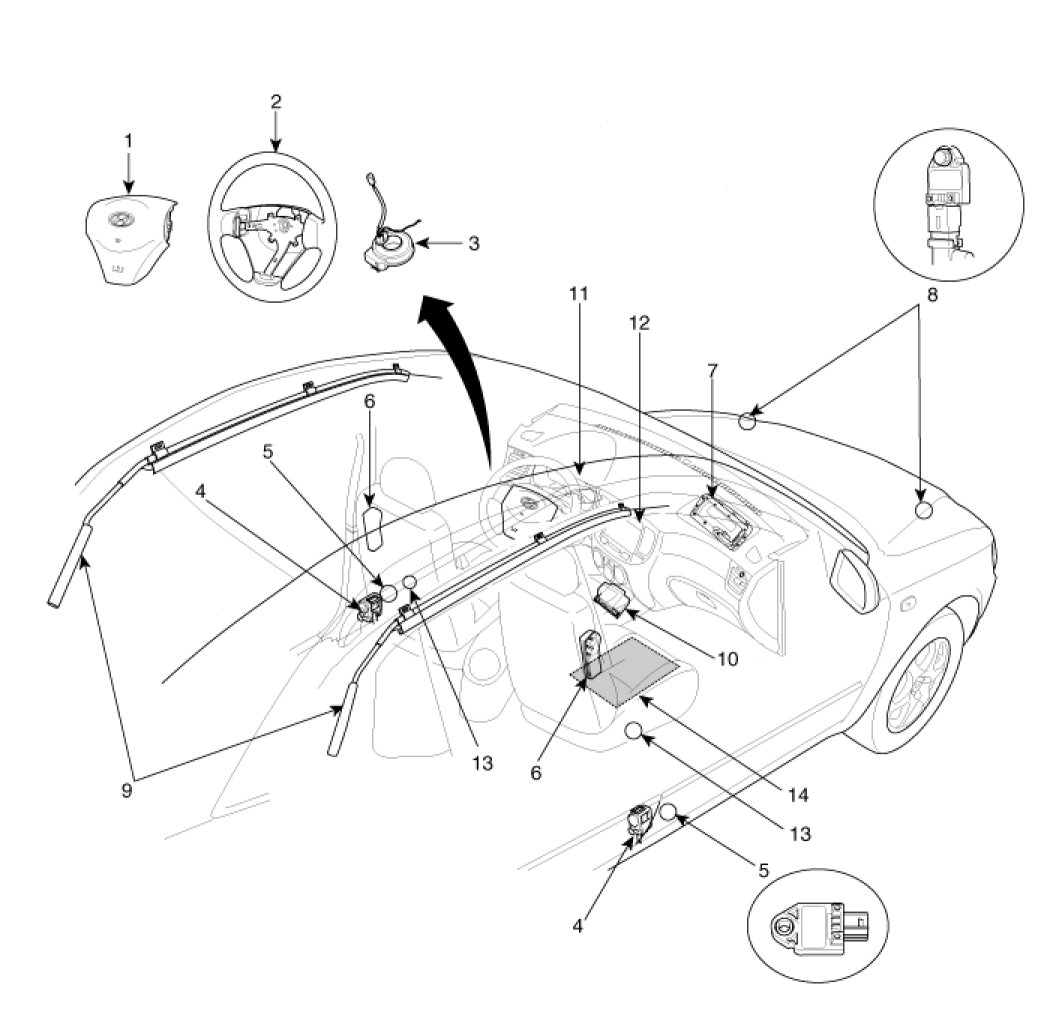

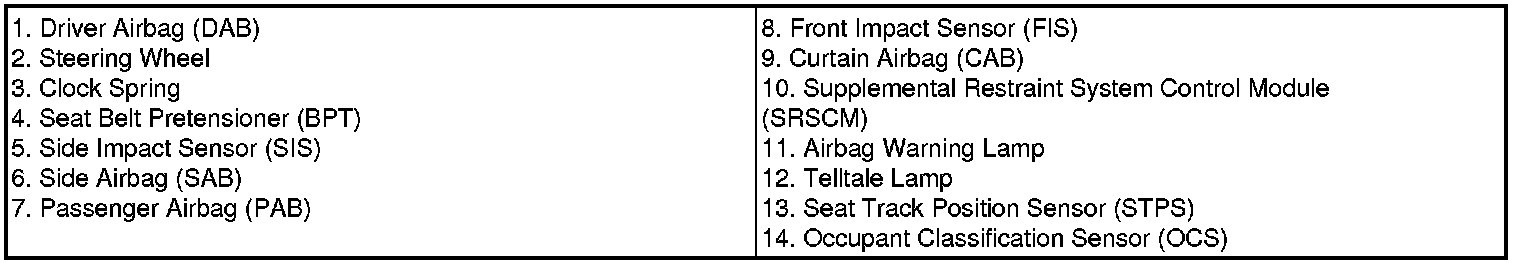

Components Location

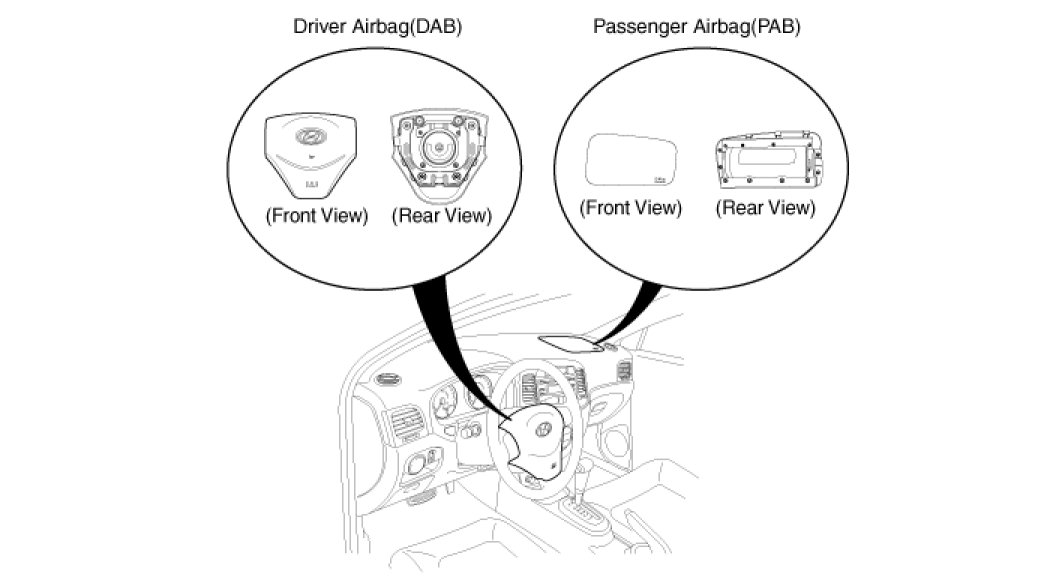

Driver Airbag (DAB) / Passenger Airbag (PAB)

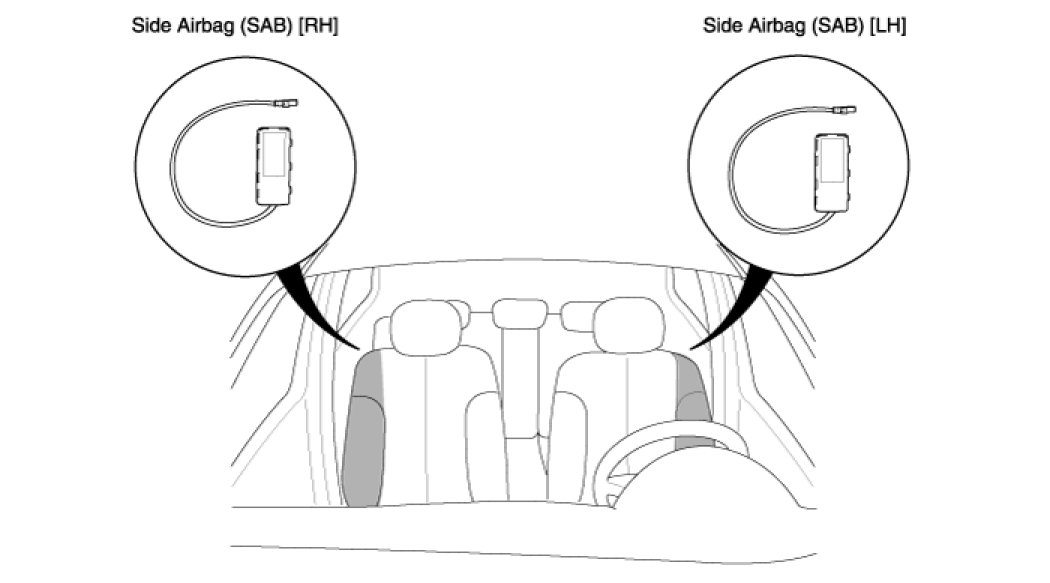

Side Airbag (SAB)

Front Impact Sensor (FIS)

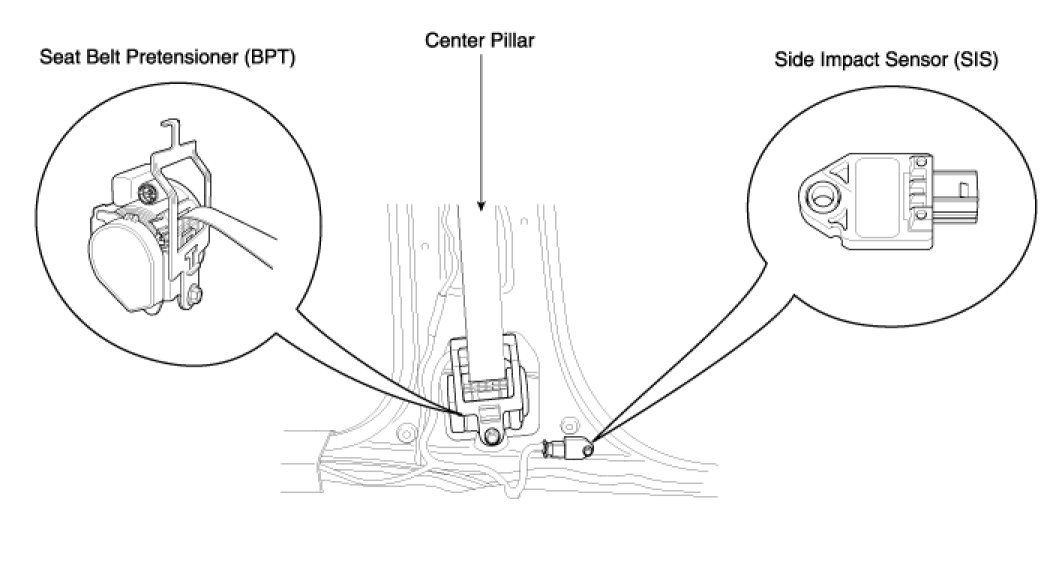

Seat Belt Pretensioner (BPT) / Side Impact Sensor (SIS)

Supplemental Restraint System Control Module (SRSCM)
