Trunk / Liftgate Lock Cylinder: Service and Repair

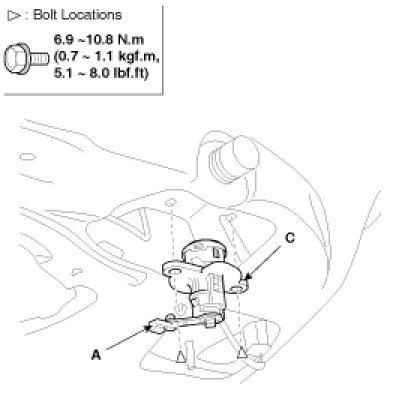

ReplacementKey Holder Replacement 1.
Remove the trunk lid trim.
2.
Disconnect the rod (A).
3.
After loosening the mounting bolt, then remove the
key holder (C).
4.
Installation is the reverse of removal.
