Seat Back: Service and Repair

Replacement

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.

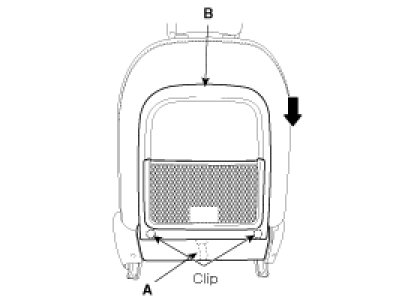

3. After disconnecting the scuff band (A), remove the seat back panel (B).

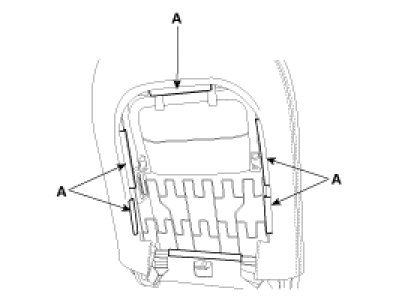

4. Disconnect the protector (A) from the back frame.

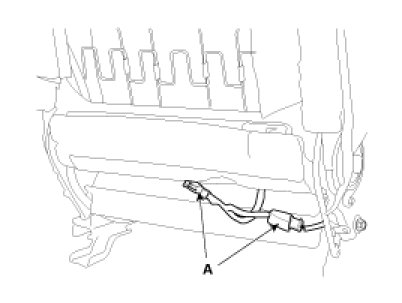

5. Disconnect the connector (A).

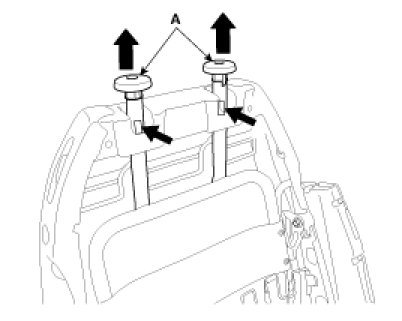

6. Remove the headrest and headrest guide (A).

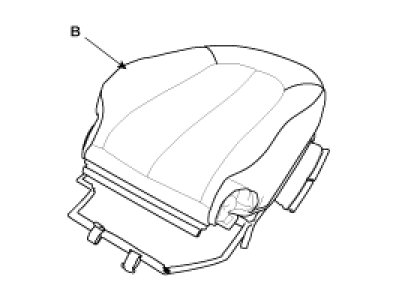

7. After removing the tape on the front of seat back remove the seat back cover (B).

8. Installation is the reverse of removal.
