Seat Assembly Replacement
ReplacementSeat Assembly Replacement 1.

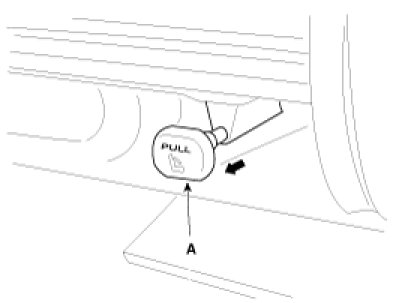

Pull the seat folding knob (A) forward.
2.

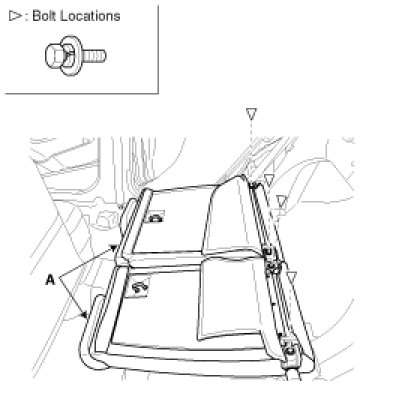

After loosening the mounting bolts, then remove the rear
seat back (A).

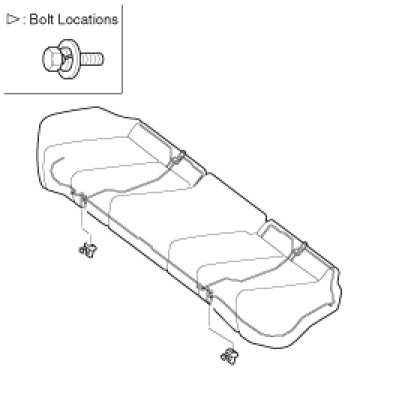

3.
Remove the rear seat cushion (A).
4.

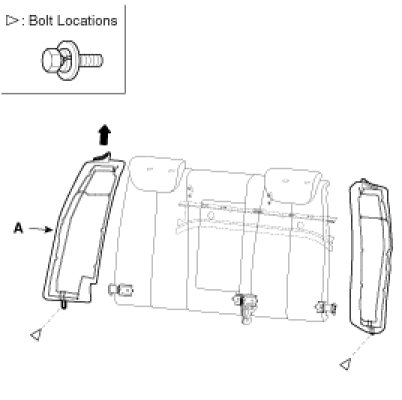

Remove the side rear
seat back (A).
5.
Installation is the reverse of removal.
