Evaporator Temperature Sensor / Switch: Service and Repair
Replacement 1.

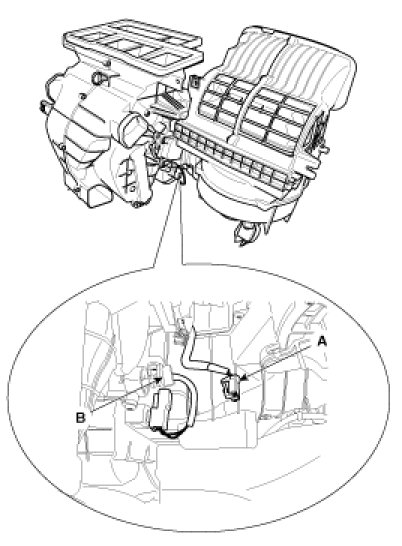

Disconnect the evaporator sensor connector(A).
2.
Remove the evaporator temperature sensor (B), by pulling it after rotating 90° in a counter clock wise direction.
3.
Installation is the reverse order of removal
