Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad. .
3. Disconnect the connectors from the intake actuator, the blower motor and power mosfet.
4. Remove the cowl cross bar assembly. .

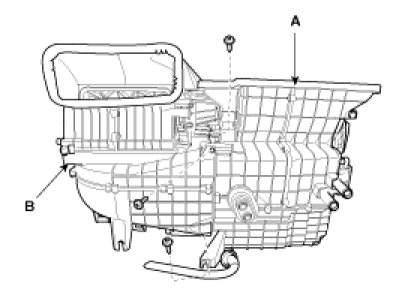

5. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and 3 screws.

NOTE:
- Make sure that there is no air leaking out of the blower and duct joints.

6. Installation is the reverse order of removal.
