Wheel Stud / Lug Nut

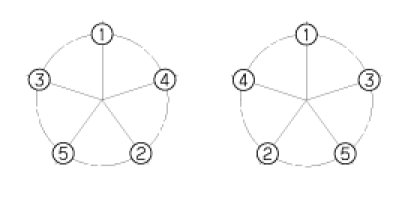

Hub Nut Tightening Sequence

Tighten the hub nuts as follows.

Tightening torque :
90 - 110N.m (9.0 - 11.0kgf.m, 65 - 80lb-ft)

CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.
