Passenger Power Window Switch

Inspection

Passenger Power Window Switch Inspection
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

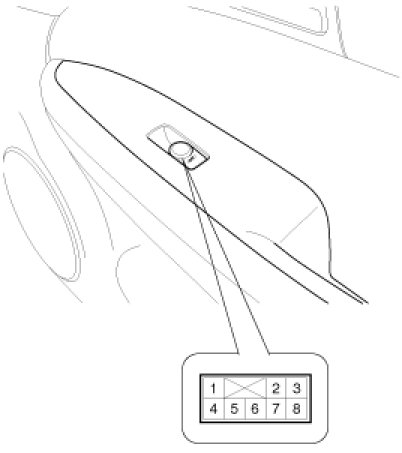

3. Disconnect the 8P connector from the switch.




4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

[Safety Window]





[Manual Power Window]
