Blower Motor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

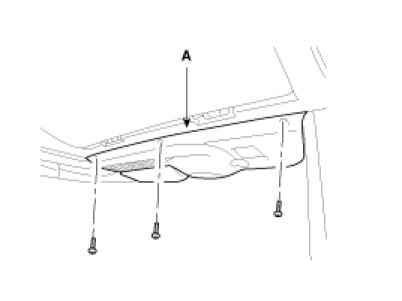

2. Remove the crash pad under cover(A).




3. Disconnect the connector of the blower motor.

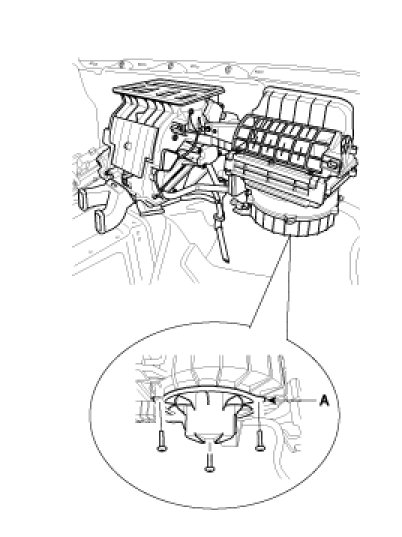

4. Remove the blower motor (A) after loosening the mounting screws.




5. Installation is the reverse order of removal.
