Brakes - Droning/Rumbling Sound While Driving
NUMBER11-BR-003
GROUP
BRAKES
MODEL(S)
2009 GENESIS SEDAN (BH)
DATE
DECEMBER, 2011
SUBJECT:
PARKING BRAKE SHOE REPLACEMENT
This TSB supersedes 09-BR-001-1 to show images of updated shoe return spring parts.
Description:
It a "droning" or "rumbling" noise is heard while driving a 2009 Genesis Sedan vehicle this bulletin provides replacement procedures for the rear parking brake shoes and related parts (both sides) to reduce the noise.
Applicable Vehicles:
Produced from JOB # 1 to Dec.12, 2008
Parts Information:
Warranty Information:

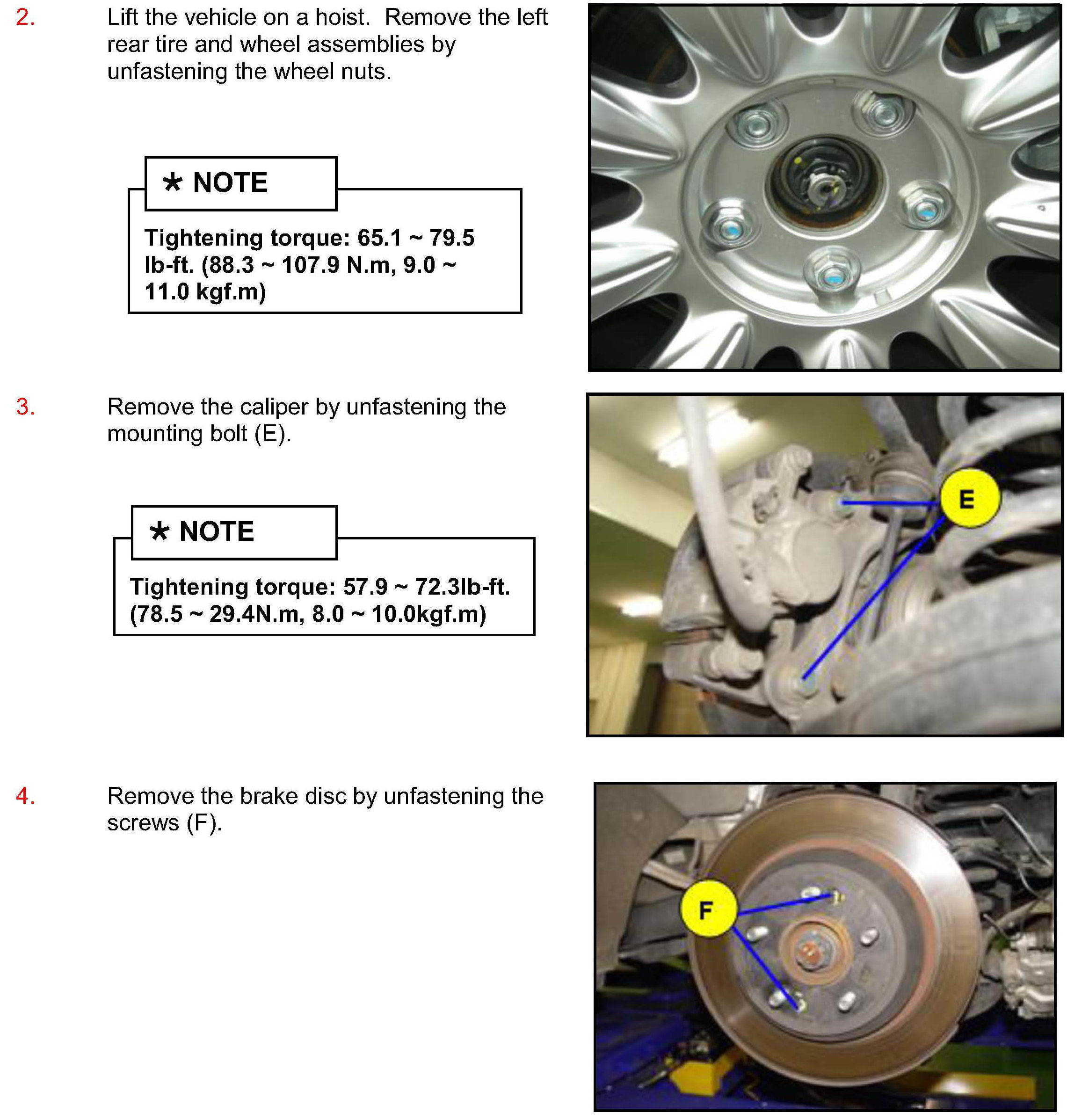

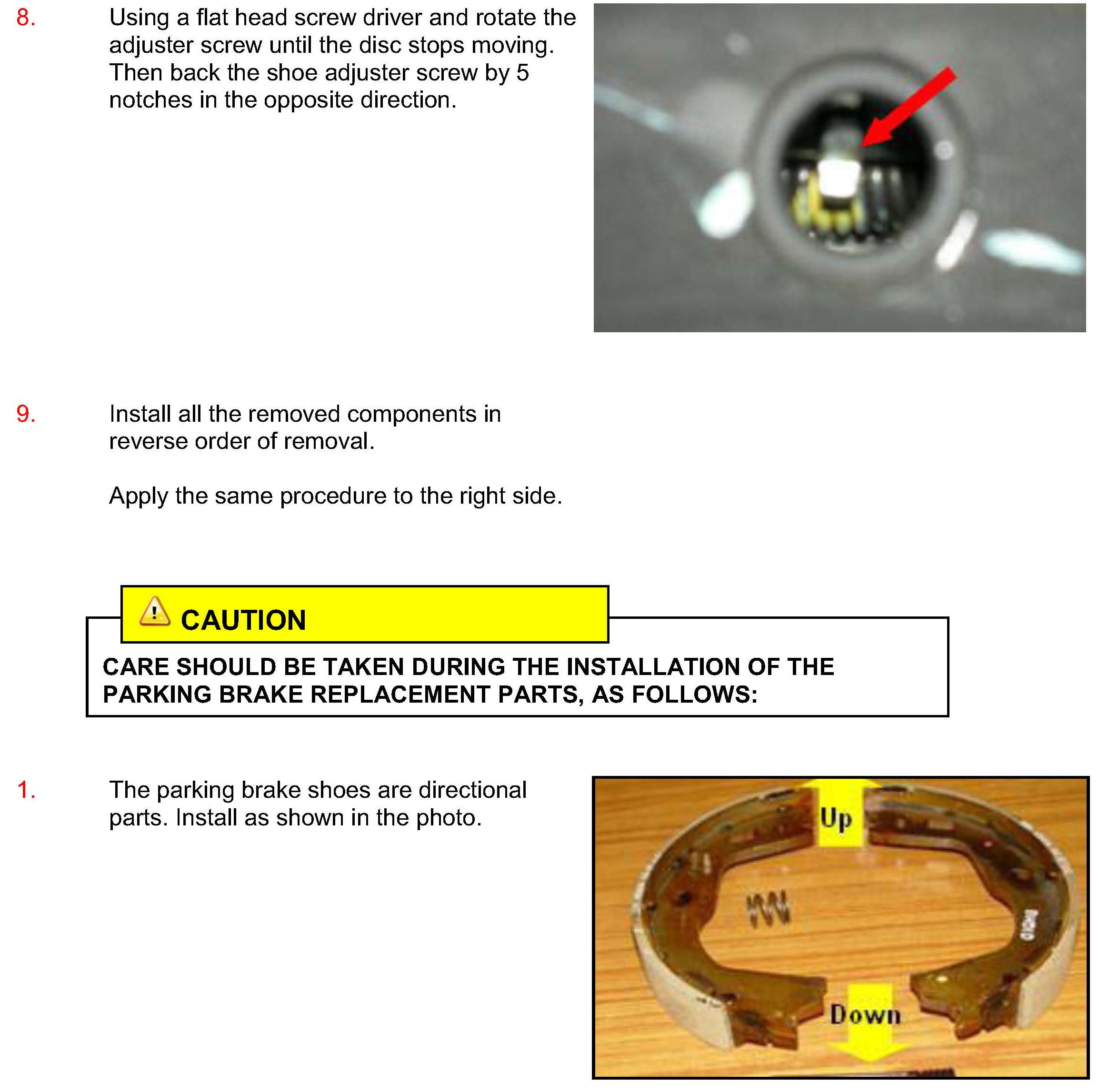

Service Procedure:
