Mirror





Replacement

Outside Rear View Mirror Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.

1. Remove the quadrant inner cover (A).

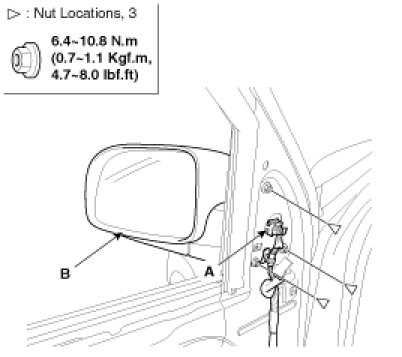

2. After disconnecting the connector (A), remove the outside rear view mirror (B).




3. Installation is the reverse of removal.

Inside Rear View Mirror Replacement

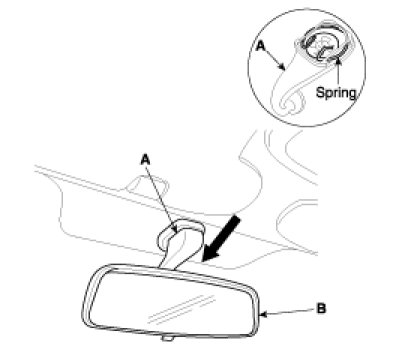

1. Push the inside rear view mirror base (A) down to remove to inside rear view mirror assembly (B).




2. Installation is the reverse of removal.

ECM Mirror Replacement

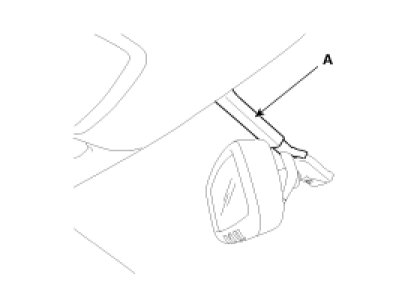

1. Remove the cover (A).




2. Remove the cover and connector (A).

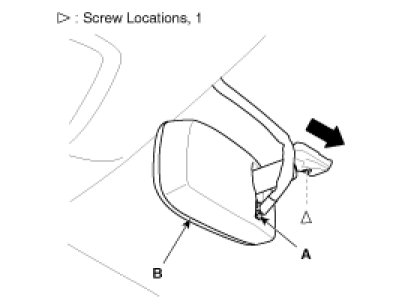

3. Push the ECM mirror base down to remove the ECM mirror assembly (B).




4. Installation is the reverse of removal.
