Seat Temperature Element: Service and Repair

Replacement

Seat Back Heater Replacement
1. Remove the seat back cover.

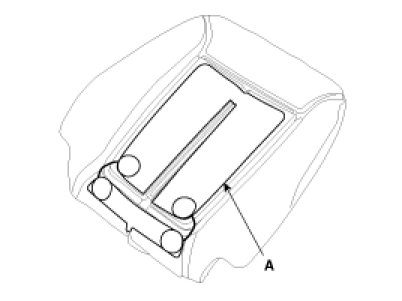

2. Cut the heater (A) attached to the sponge, as shown in the picture.





NOTE:
- Be sure to perform PODS re-zero with Hi-scan (pro) after replacingparts (Passenger's)

Seat Cushion Heater Replacement
1. Remove the seat back cover.
2. Cut the heater (A) attached to the sponge, as shown in the picture.





NOTE:
- The passenger front seat cushion is not servicable (PODS)
