Replacement
ReplacementFront Brake Pads 1.

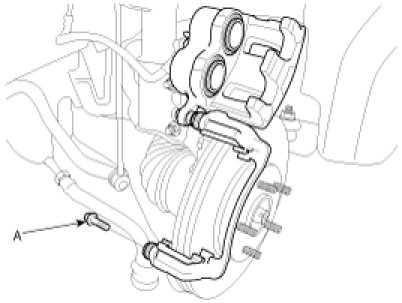

Loosen the guide rod bolt (A) and pivot the caliper (B) up out of the way.
2.
Replace shims (A), pad retainers (B), and
brake pads (C).
3.

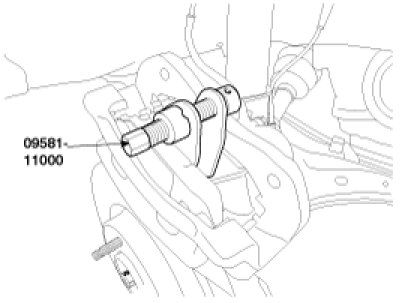

Push the piston in the cylinder using a SST (09581-11000)
4.
Pivot the caliper down and tighten the guide rod bolt.
Tightening torque : 21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)
