Air Register: Service and Repair

Replacement

Air Vent Replancment

Driver's
1. Remove the crash pad side cover.
2. Remove the center garnish (A).

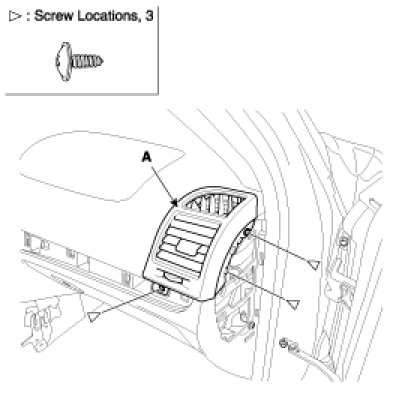

3. After loosening the mounting screw, then remove the air vent (A).

4. Installation is the reverse of removal.

Passenger's
1. Remove the crash pad side cover.

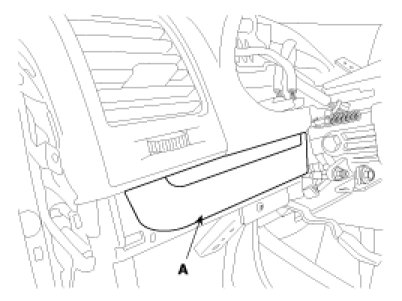

2. Remove the crash pad center lower garnish.

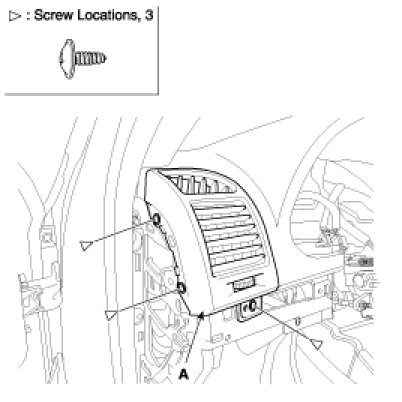

3. After loosening the mounting screw, then remove the air vent (A).

4. Installation is the reverse of removal.
