Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the blower under cover after loosening 2 screws.

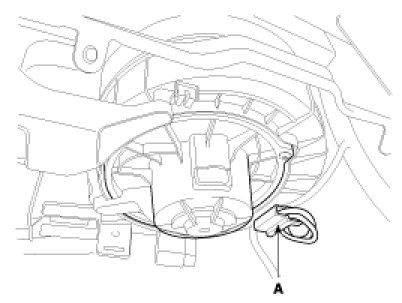

3. Disconnect the connector (A) of the blower motor.

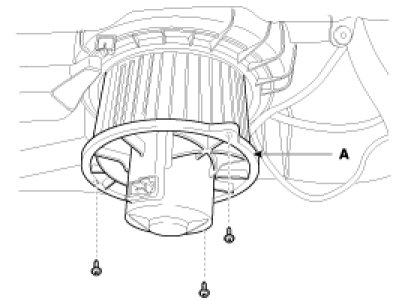

4. Remove the blower motor (A) after loosening the mounting screws.




5. Installation is the reverse order of removal.
