Repair Procedures
Replacement 1.
Disconnect the negative (-) battery terminal.
2.

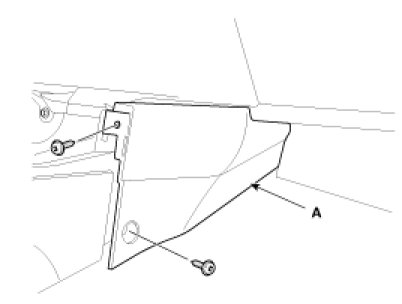

Remove the center lower side cover.
3.

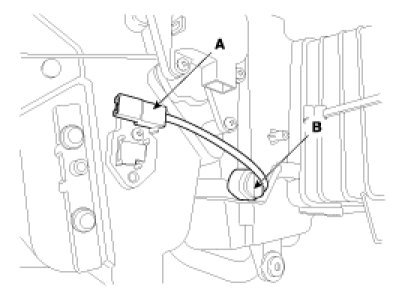

Disconnect the evaporator sensor connector (A).
4.
Remove the evaporator temperature sensor(B), by pulling it after rorating 90° in a counterclockwise direction.
CAUTION: Take care that evaporator core pins are not bent.
5.
Installation is the reverse order of removal.
