Auxiliary Power Outlet Switch: Service and Repair
Removal 1.
Disconnect the negative(-) battery terminal.
2.

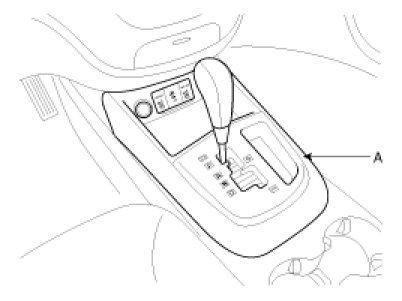

Remove the console upper cover (A).
3.

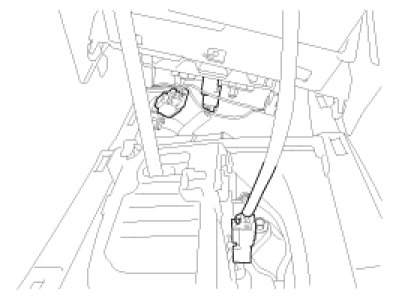

Disconnect the connectors.
4.

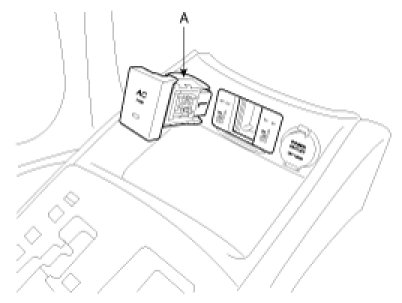

Remove the A/C Inverter switch (A) from the console upper cover.
Installation 1.
Install the A/C inverter switch to the console upper cover.
2.
Connect the A/C inverter switch connector.
3.
Install the console upper cover.
