Auxiliary Power Outlet Switch: Testing and Inspection

Inspection

1. Disconnect the negative(-) battery terminal.

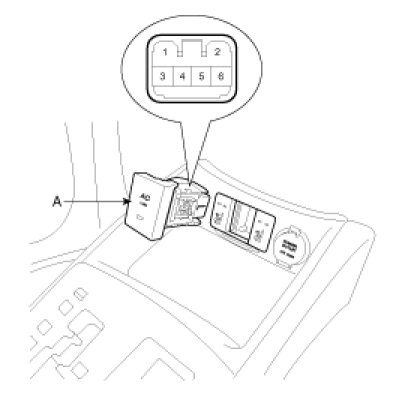

2. Remove the A/C inverter switch (A) from the console upper cover.

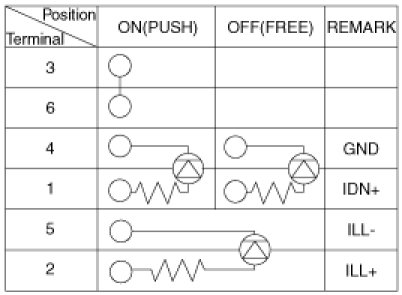

3. Check that continuity exists between the terminals.
