Crankshaft, Engine

Crankshaft Journal Diameter & Limits

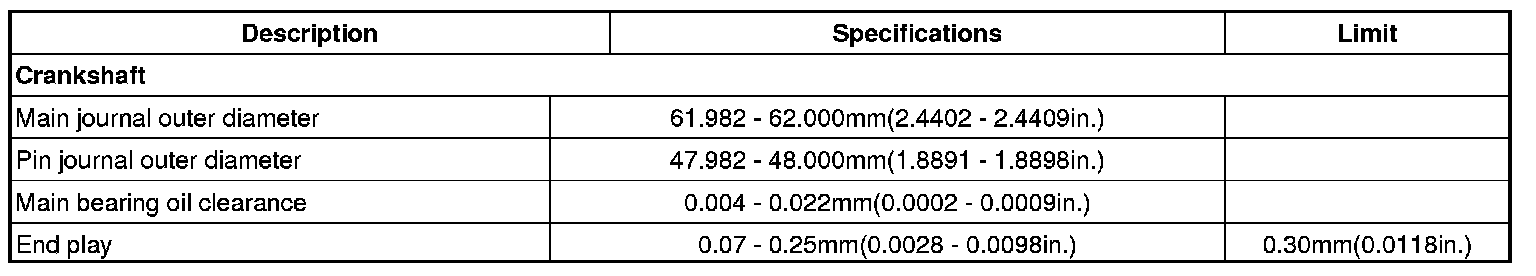

Crankshaft Specifications

Reinstall the bearing half and cap, and torque the bolts.

Tightening torque 19.6 Nm (2.0 kgf.m, 14.46 lbf.ft) + 90°

Check crankshaft end play.
Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

Standard end play 0.10 - 0.28 mm (0.0039 - 0.0110 in.)

Main journal diameter 68.942 - 68.960 mm (2.7142 - 2.7149 in.)
Crank pin diameter 54.954 - 54.972 mm (2.1635 - 2.1642 in.)
