Camshaft Sprocket





Camshaft Sprocket

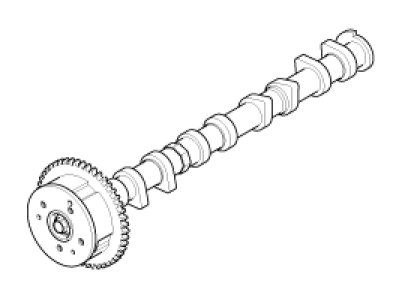

Install the CVVT and camshaft sprocket.

Tightening torque 64.68 - 76.44 Nm(6.6 - 7.8 kgf.m, 47.74 - 56.4 lb-ft)
