Cylinder Head

NOTE: Head Bolts are reusable.

Cylinder Head

Install cylinder head bolts
(1) Do not apply engine oil on the threads and under the heads of the cylinder head bolts.

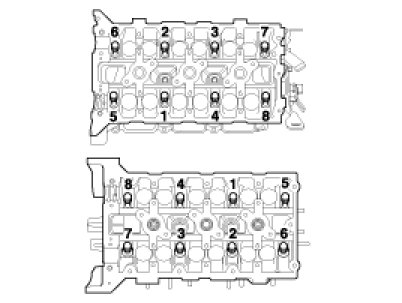

(2) Using SST(09221-4A000), install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque
39.2 Nm (4.0 kgf.m, 28.93 lb-ft) + 120° + 90°

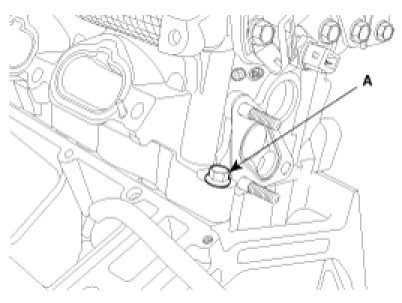

18.62 - 23.52 Nm (1.9 - 2.4 kgf.m, 13.74 - 17.36 lb-ft)(A)

NOTE: Always use new cylinder head bolt.














Cylinder Head Surface Variation






Flatness of cylinder head gasket surface
Standard Less than 0.05 mm(0.002 in.)[Less than 0.02 mm(0.0008 in.)/150x150]
