Repair Procedures
Removal 1.
Disconnect the battery negative cable.
2.

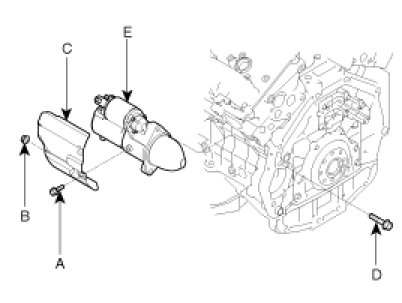

Remove the starter cover (C) by loosening the two bolts (A) and the one nut (B).
3.
Disconnect the starter cable from the B terminal on the solenoid, and the connector from the S terminal.
4.
Remove the 2 bolts (D) holding the starter, then remove the starter (E).
5.
Installation is the reverse of removal.
6.
Connect the battery negative cable to the battery.
