Home >> Hyundai >> 2009 >> Santa Fe AWD V6-3.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection

Automatic Transmission/Transaxle: Testing and Inspection

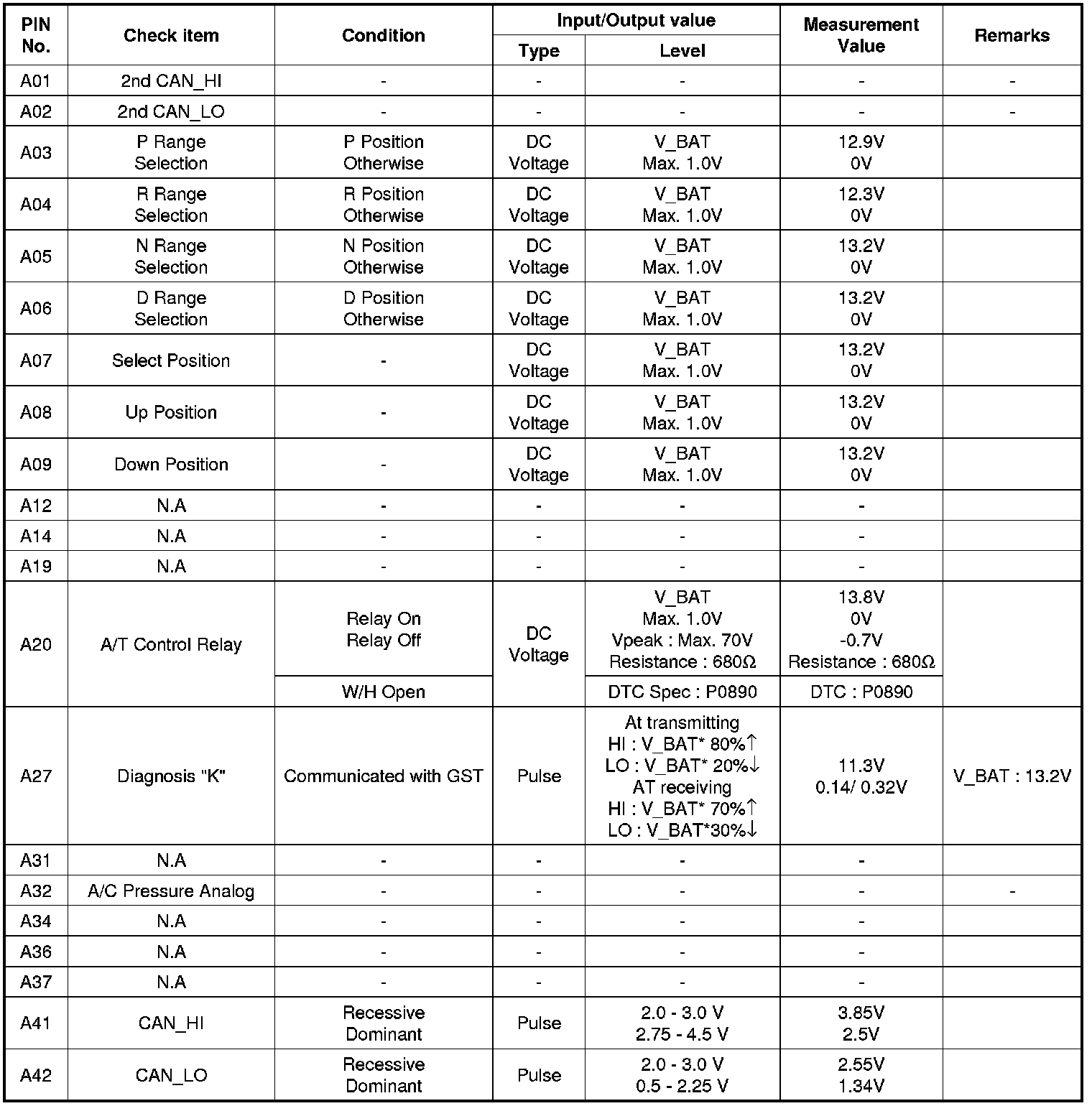

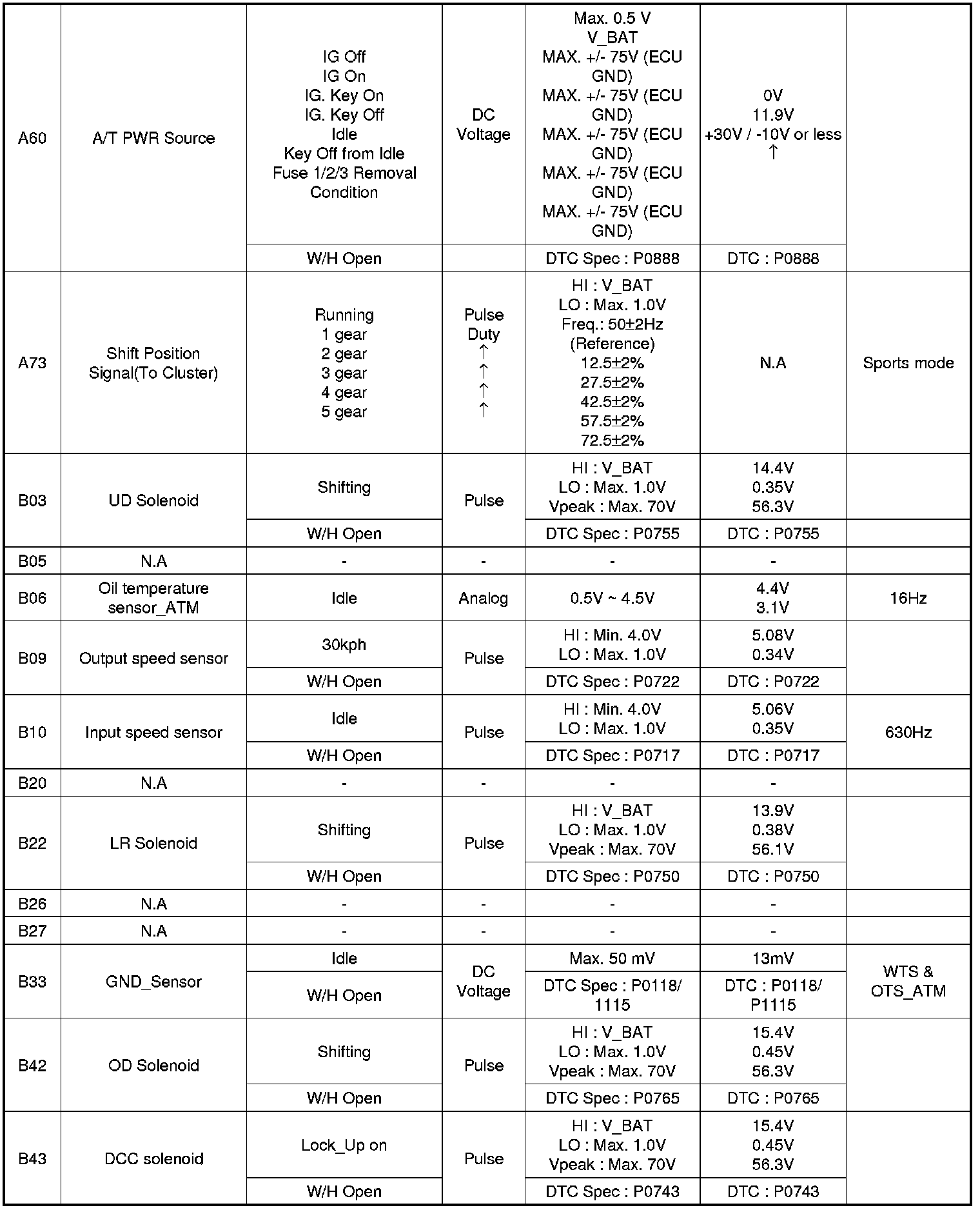

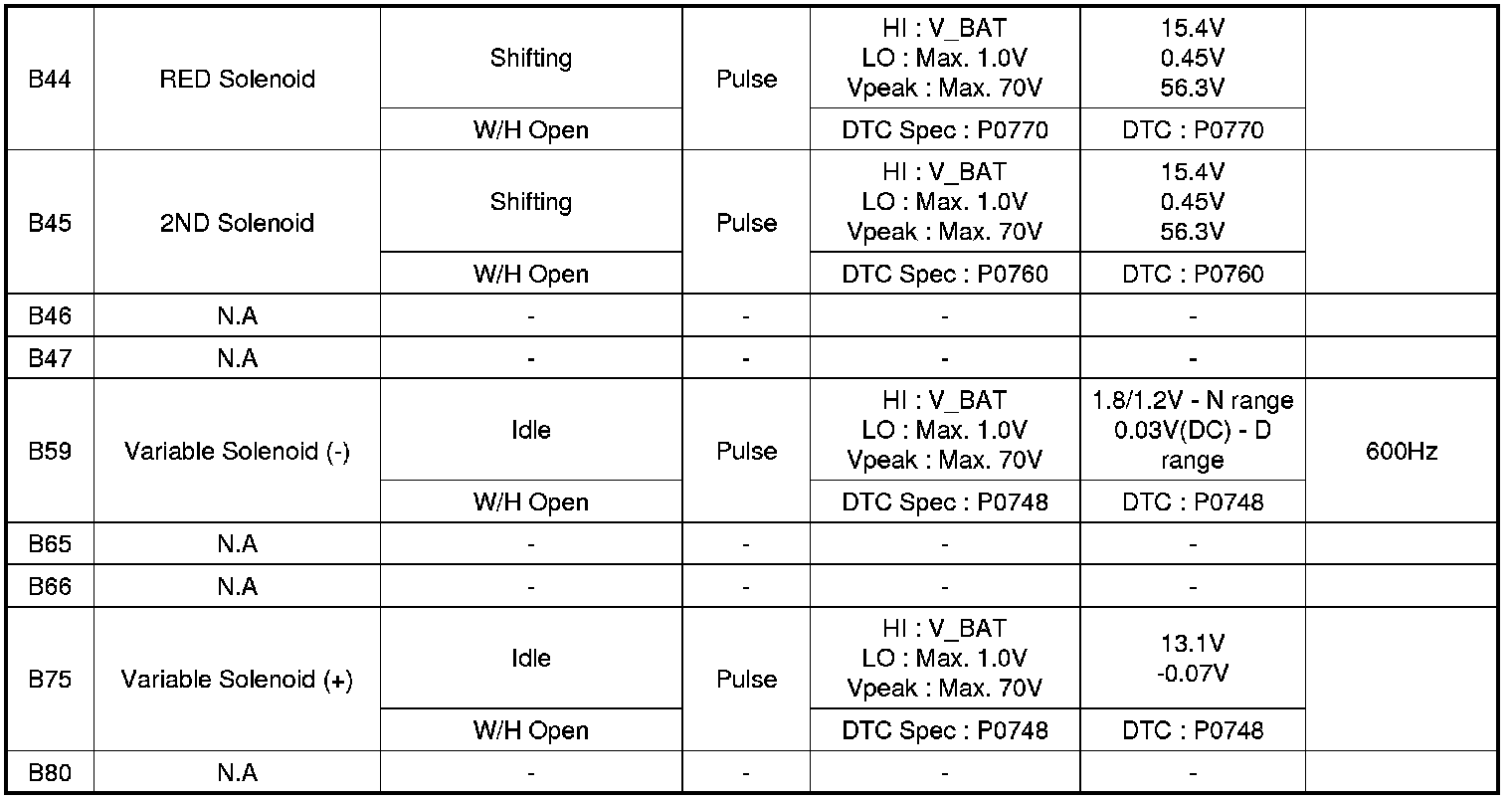

Input/output Signal Voltage Check Sheet
