Output Speed Sensor





Removal

1. Remove the battery terminal.
2. Remove the battery and battery tray.
3. Remove the air cleaner assembly. (refer to the automatic transaxle- Removal/ installation procedures)
4. Remove the output speed sensor connector.

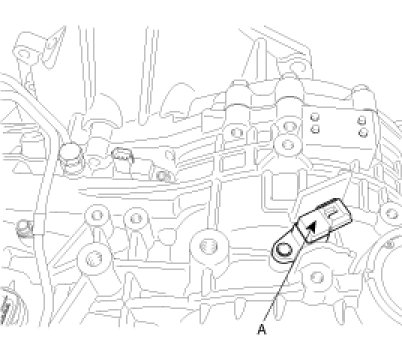

5. Remove the output speed sensor(A).






Installation

1. Install the new O-ring to the output speed sensor.
2. Remove the output speed sensor.

Tightening torque :
10 - 12Nm(1.0 - 1.2kgf.m, 7 - 8lb-ft)


CAUTION:
While installing the output speed sensor, do not allow dust or other foreign particles to enter the transaxle.

3. Check the connector for dust, dirt, or oil, then connect the connector securel.
4. Installation is the reverse of removal.
