Over-Run Clutch Assembly: Service and Repair

Removal

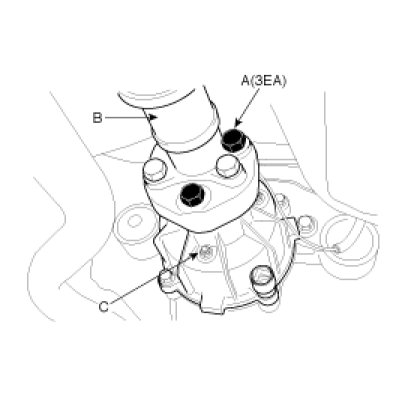

1. Remove the 4WD coupling bolts (A-3EA) mounted to the rear propellar shaft(B).

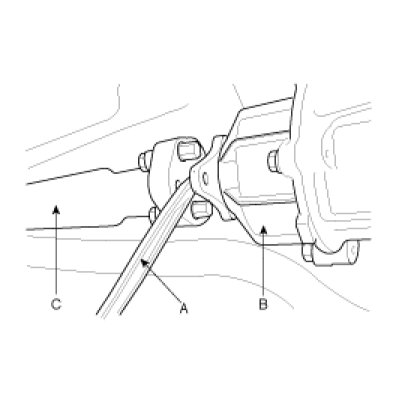

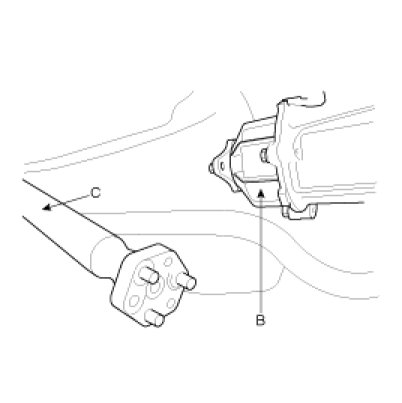

2. Using a flat tool(A), separate the propellar shaft(C) from 4WD coupling(B).

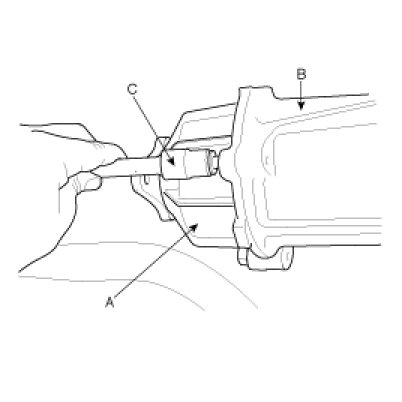

3. Remove the rear axle (B-Differential carrier) bolts mounted to the 4WD coupling(A) by a socket(C).

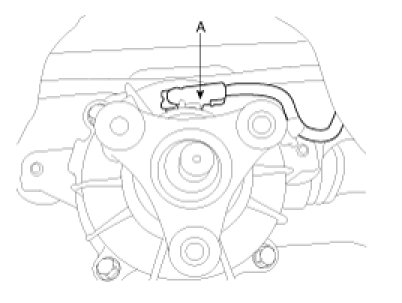

4. Remove the electric magnetic clutch connector(A).

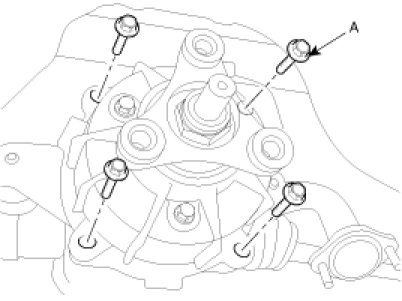

5. Remove the 4WD coupling assembly mounting bolts(A-4ea).




6. Using a flat tool(A), separate the 4WD coupling assembly(B) from the rear differential carrier(C).




7. Remove the 4WD coupling assembly(A).

Installation

Installation is the reverse of the removal.
