Glass Replacement

Replacement

Glass Replacement
1. Remove the front door trim.

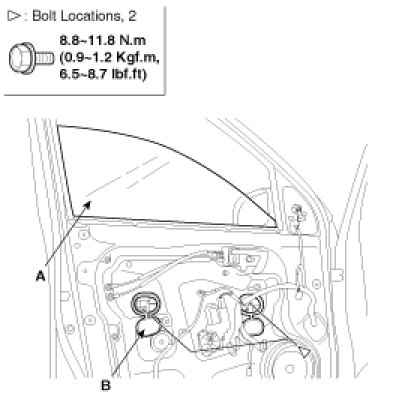

2. Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.




3. Installation is the reverse of removal.

NOTE:
- Roll the glass up down to see if it move freely without binding.
- Adjust the position of the glass as necessary.
