Windshield Washer Motor: Service and Repair

Replacement

CAUTION:
- When servicing the washer pump, be careful not to damage the washer pump seal.
- Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

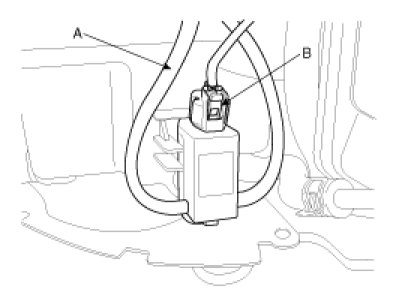

3. Remove the washer hose (A) and the washer motor connector (B).

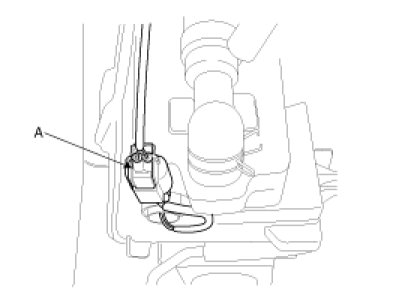

4. Disconnect the washer fluid level sensor switch connector (A).




5. Remove the washer reservoir after removing 3 bolts.




6. Installation is the reverse of removal.

NOTE:
Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.
