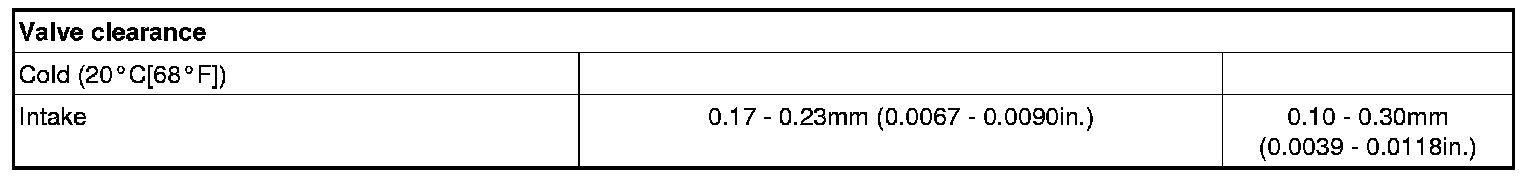

Valve Clearance
Valve clearanceValve clearanceSpecification
Engine coolant temperature : 20°C [68°F]
Limit
Intake
0.10 - 0.30 mm (0.0039 - 0.0118 in.)
Exhaust
0.20 - 0.40 mm (0.0079 - 0.0157 in.)
Valve clearance (Engine coolant temperature : 20°C)[Specification]
Intake
0.17 - 0.23 mm (0.0067 - 0.0090 in.)
Exhaust
0.27 - 0.33 mm (0.0106 - 0.0129 in.)
