Repair Procedures





Removal

1. Remove the windshield wiper arm and blade after removing a nut (A).

Tighting torque :
23 - 27 Nm (2.3 - 2.7 kgf.m, 17 - 20 lb-ft)





2. Remove the weather strip then remove the cowl top cover (A) after removing 3 clips (B).




3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts. Disconnect the wiper motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Tighting torque :
7-11Nm (0.7-1.1, kgf.m, 5.0-7.9 lb-ft)





4. Installation is the reverse of removal.

Installation

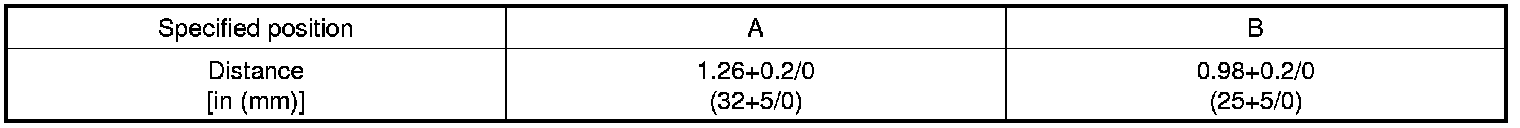

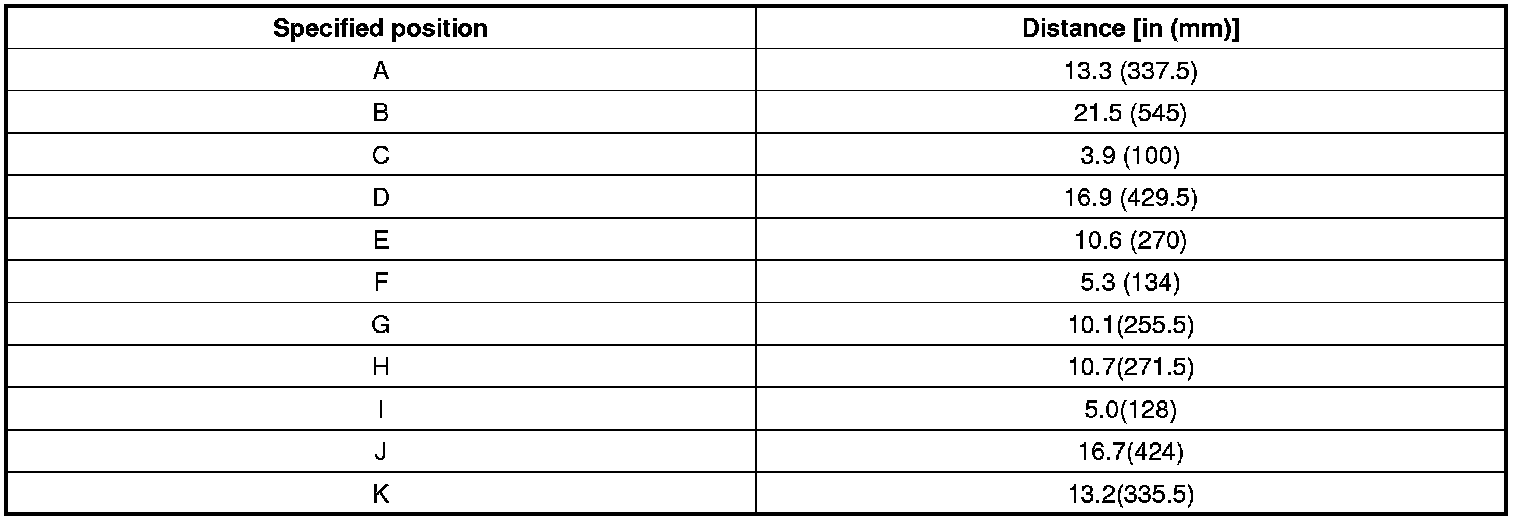

1. Install the wiper arm and blade to the specified position.









2. Set the washer nozzle on the specified spray position.
