Cruise Control: Locations

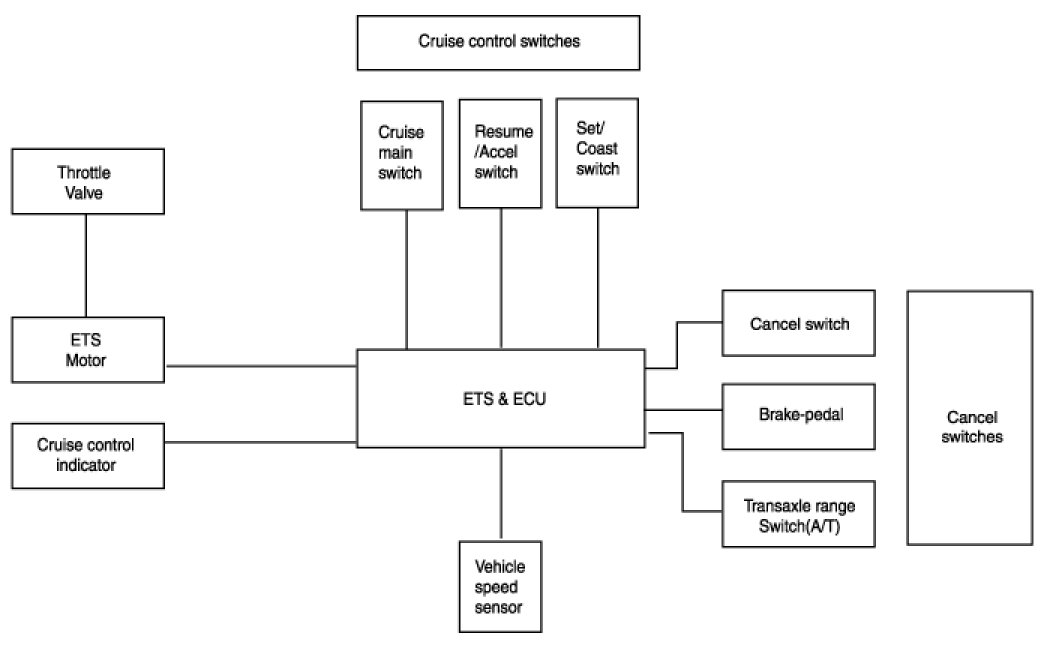

System Block Diagram

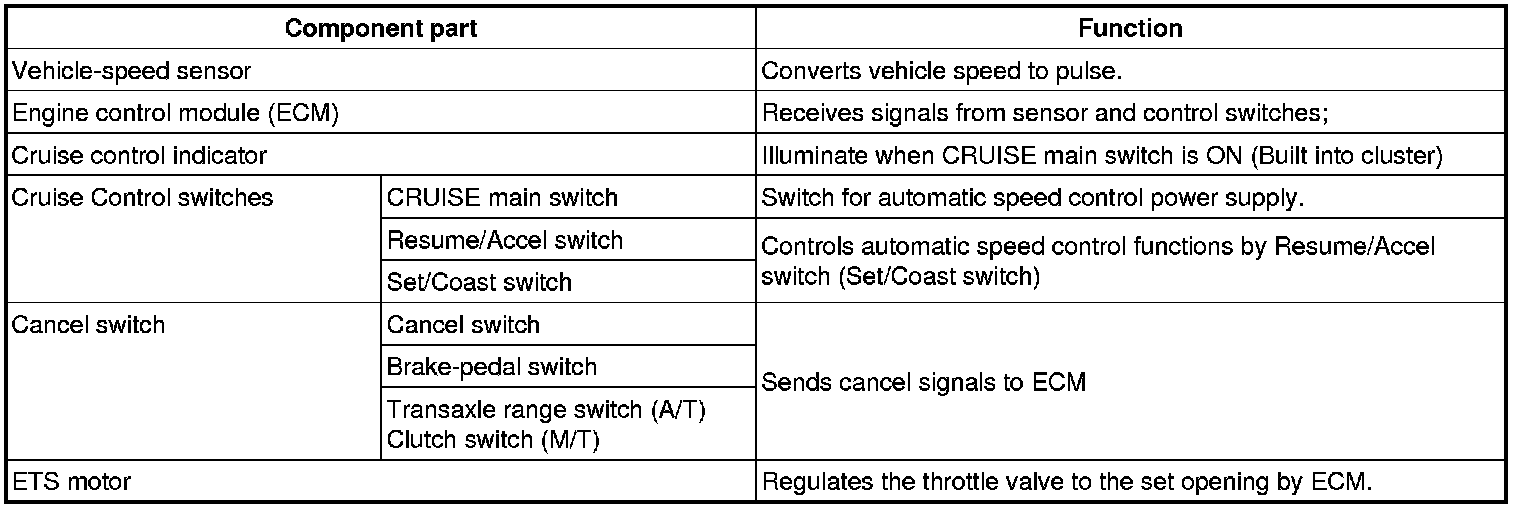

Component Parts And Function Outline
* ETS : Electronic Throttle System
