Repair procedures

Replacement

1. Disconnect the negative (-) battery terminal.

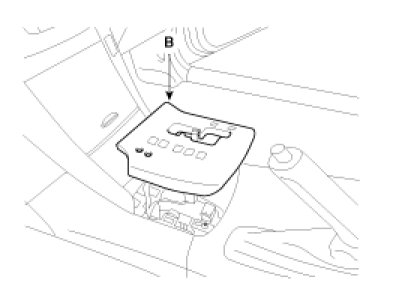

2. Remove the console upper cover(B).

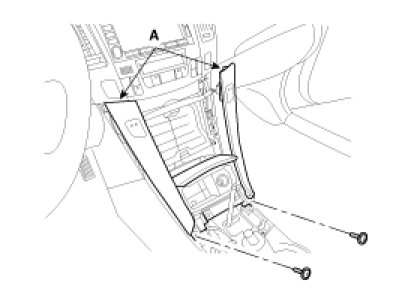

3. Loosen the mounting screw and then remove the side garnish(A).

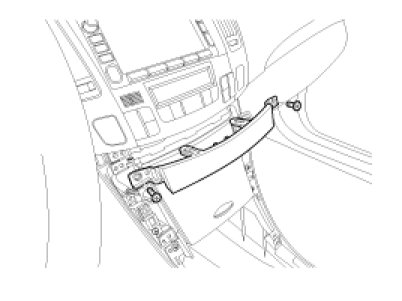

4. Loosen the mounting screw and then remove the center garnish(A).




5. Remove the center facia panel(A).

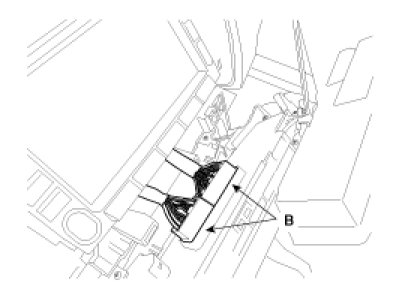

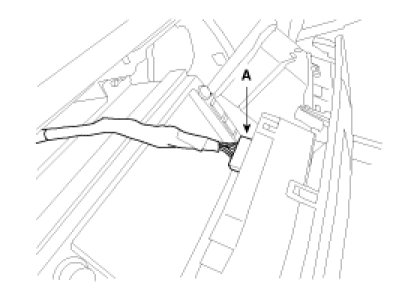

6. Disconnect the clock connector(A) and heater control unit connector(B).

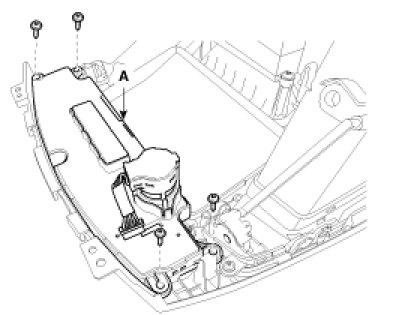

7. Loosen the mounting screw and then remove the control unit(A).




8. Installation is the reverse order of removal.
