Valve Clearance

Valve clearance







Valve clearance

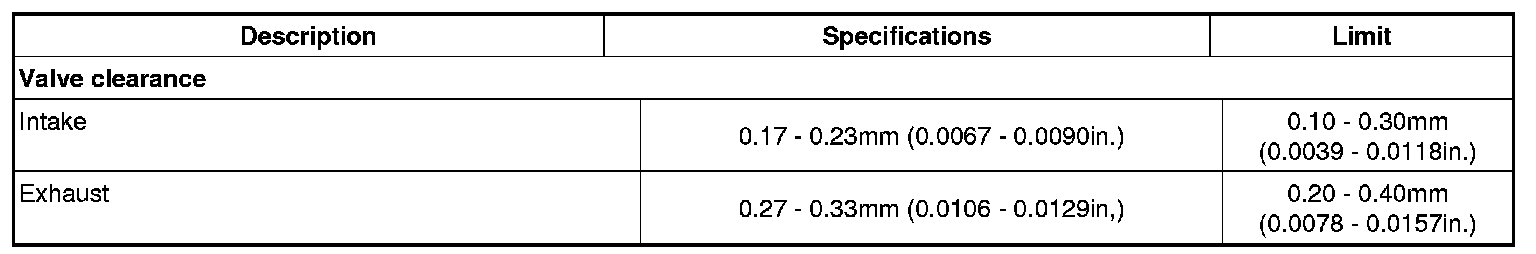

Specification
Engine coolant temperature : 20°C [68°F]
Limit
Intake : 0.10 - 0.30 mm (0.0039 - 0.0118 in.)
Exhaust : 0.20 - 0.40 mm (0.0079 - 0.0157 in.)

Valve clearance (Engine coolant temperature: 20°C[68°F])
[Specification]
Intake 0.17 - 0.23 mm (0.0067 - 0.0090 in.)
Exhaust 0.27 - 0.33 mm (0.0106 - 0.0129 in.)
