Front Subframe: Service and Repair

Replacement

1. Remove the under cover.

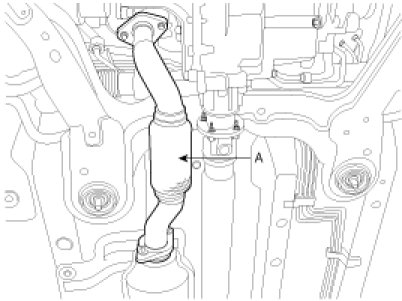

2. Remove the front pipe (A).

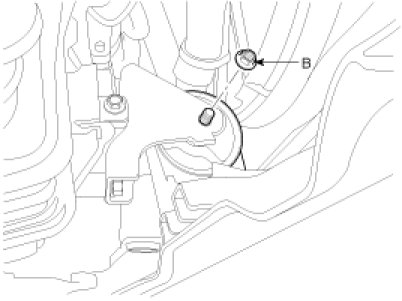

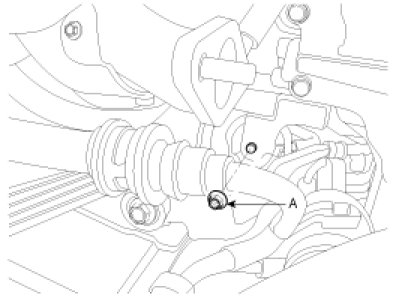

3. Loosen the mount nuts (A, B).








4. Remove the sub frame bracket.

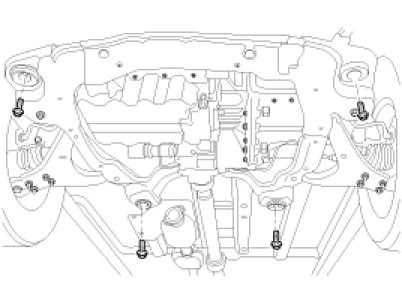

5. Remove the mount nuts.




6. Installation is the reverse of the removal.

Bush

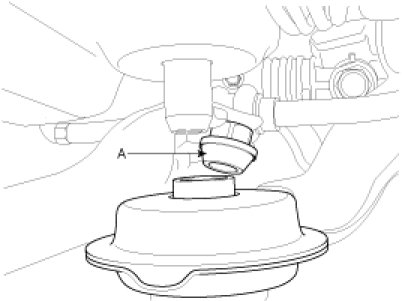

1. Installation the main nut (A).

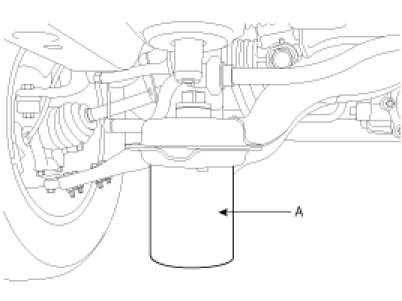

2. Installation the support (A).

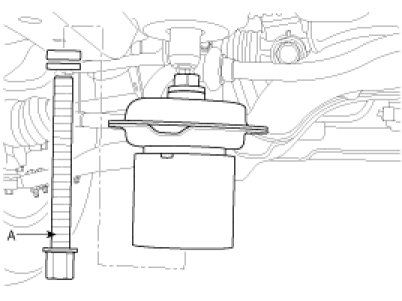

3. the main bolt (A) through the support and bush then fasten a main bolt with a nut.




4. Remove the bush after turning the main bolt clockwise.
5. Installation is the reverse of the removal.
