Front Console Replacement





Front Console Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the trim and other parts.

1. Remove the crash pad center lower cover
.

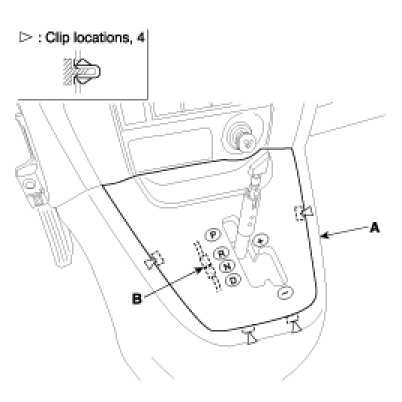

2. Remove the front console upper cover (A) and disconnect the connector (B).

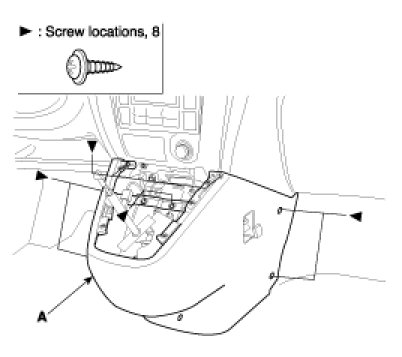

3. After loosening the mounting screw, remove the front console (A).




4. Installation is the reverse of removal.
