Power Door Lock Relay: Testing and Inspection
Inspection 1.
Remove the negative(-) battery terminal.
2.
Remove the driver side crash pad lower panel.
3.

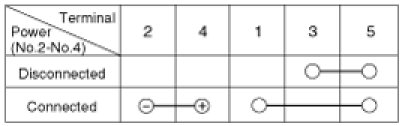

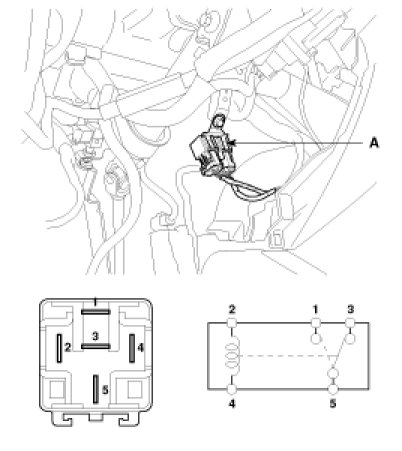

Remove the door lock and unlock relay(A) from the cross member bracket, then check for continuity between the terminals.
