Trunk / Liftgate Lock Cylinder: Service and Repair
Key holder replacement 1.
Remove the
tailgate trim .
2.
Remove the
tailgate garnish .
3.

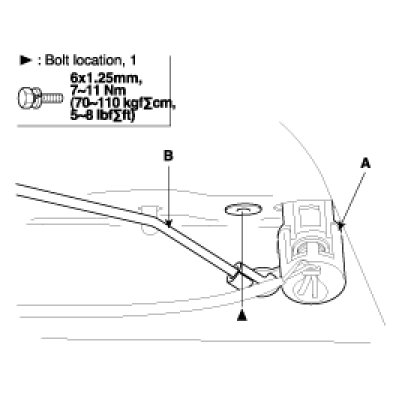

Disconnect the
key rod (A) and connector.
4.
Remove the
key holder (B).
5.
Installation is the reverse of removal.
NOTE: Make sure the
tailgate glass opens properly and locks securely.
