Acceleration/Deceleration Sensor: Testing and Inspection
Inspection 1.

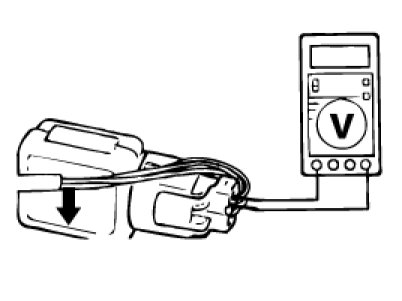

Connect a tester to both 2 and 3 terminals of the G sensor.
2.
Measure the output voltage when IGN is on.
Specification :2.5V
3.

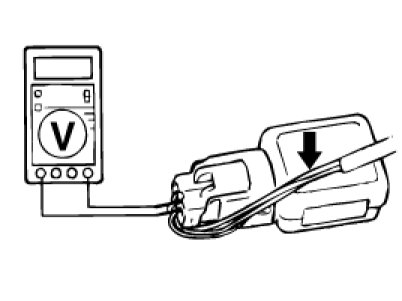

Measure the output voltage between 2 and 3 terminals, posing the arrow mark on the G sensor downward.
Specification :3.5V
4.
Replace the G sensor if the output voltage is not on the specification.
