Brake Switch (Cruise Control): Testing and Inspection

Brake Switch Test

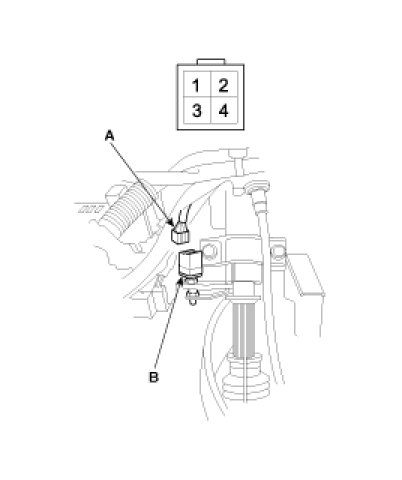

1. Disconnect the connector(A) from the brake switch.
2. Remove the brake switch(B).

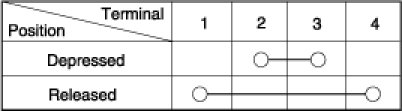

3. Check for continuity between the terminals according to the table.

4. If necessary, replace the switch or adjust the switch.
