Cruise Control Switch: Service and Repair

Cruise Remoter Switch Replacement
1. Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
2. Remove the driver's airbag .

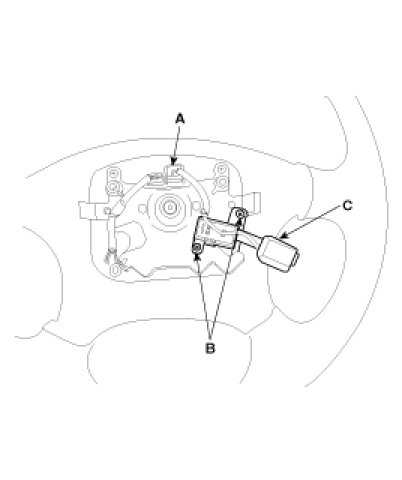

3. Disconnect the remoter switch connector(A).
4. Loosen the two mounting screws(B), and remove the cruise remoter switch(C).

5. Installation is the reverse of removal.
6. Connect the battery positive cable and negative cable to the battery.
