Solar Sensor: Description and Operation

Description

The photo sensor is located in the center of defrost nozzle. In response to the photo intensity level in the vehicle, the sensor will send signals to control module to control the blower level and discharge temperature.

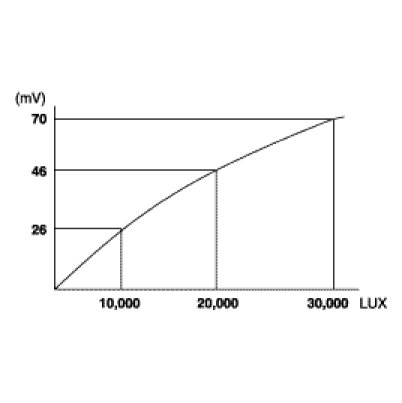

Characteristics
