Ambient Light Sensor: Testing and Inspection
Inspection 1.

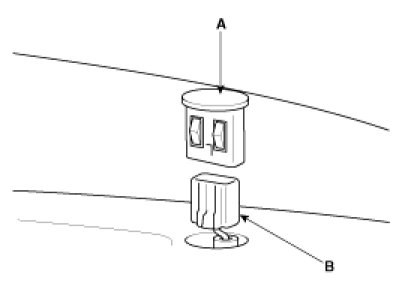

Remove the photo & auto light sensor (A) from the center crash pad upper.
2.

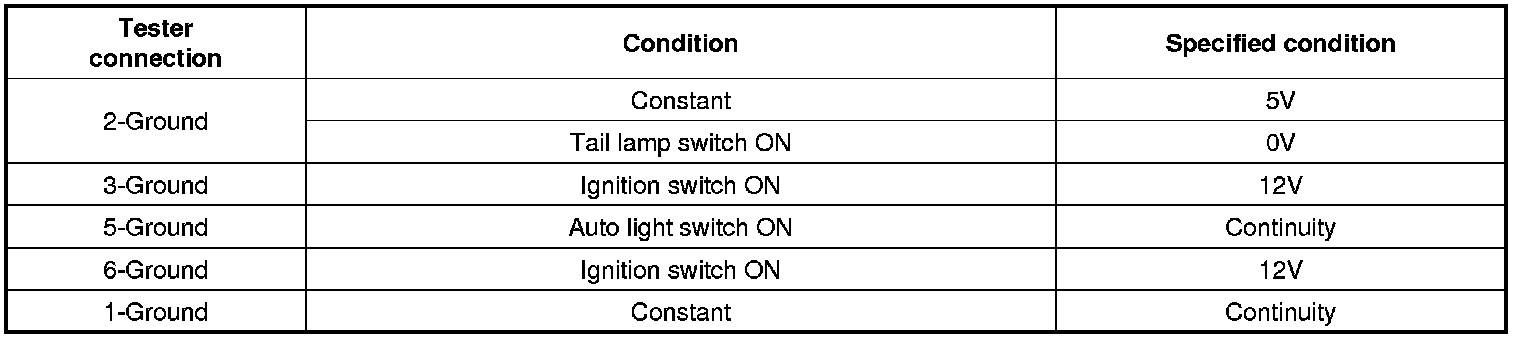

Disconnect the 8P connector (B) from the auto light unit then inspect the connector on the wire harness side, as shown in the chart.
3.
If the circuit is not as specified, inspect the circuits connected to other parts.
