Pinout Values and Diagnostic Parameters
ENGINE CONTROL MODULE (ECM)ECM HARNESS CONNECTOR

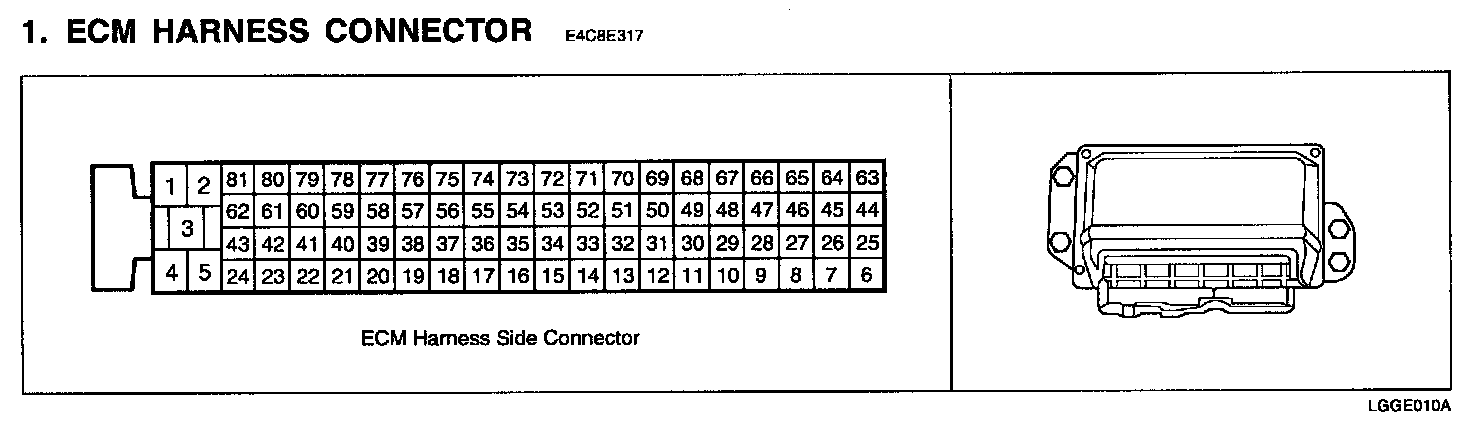

ECM Harness Connector:
ECM TERMINAL FUNCTION

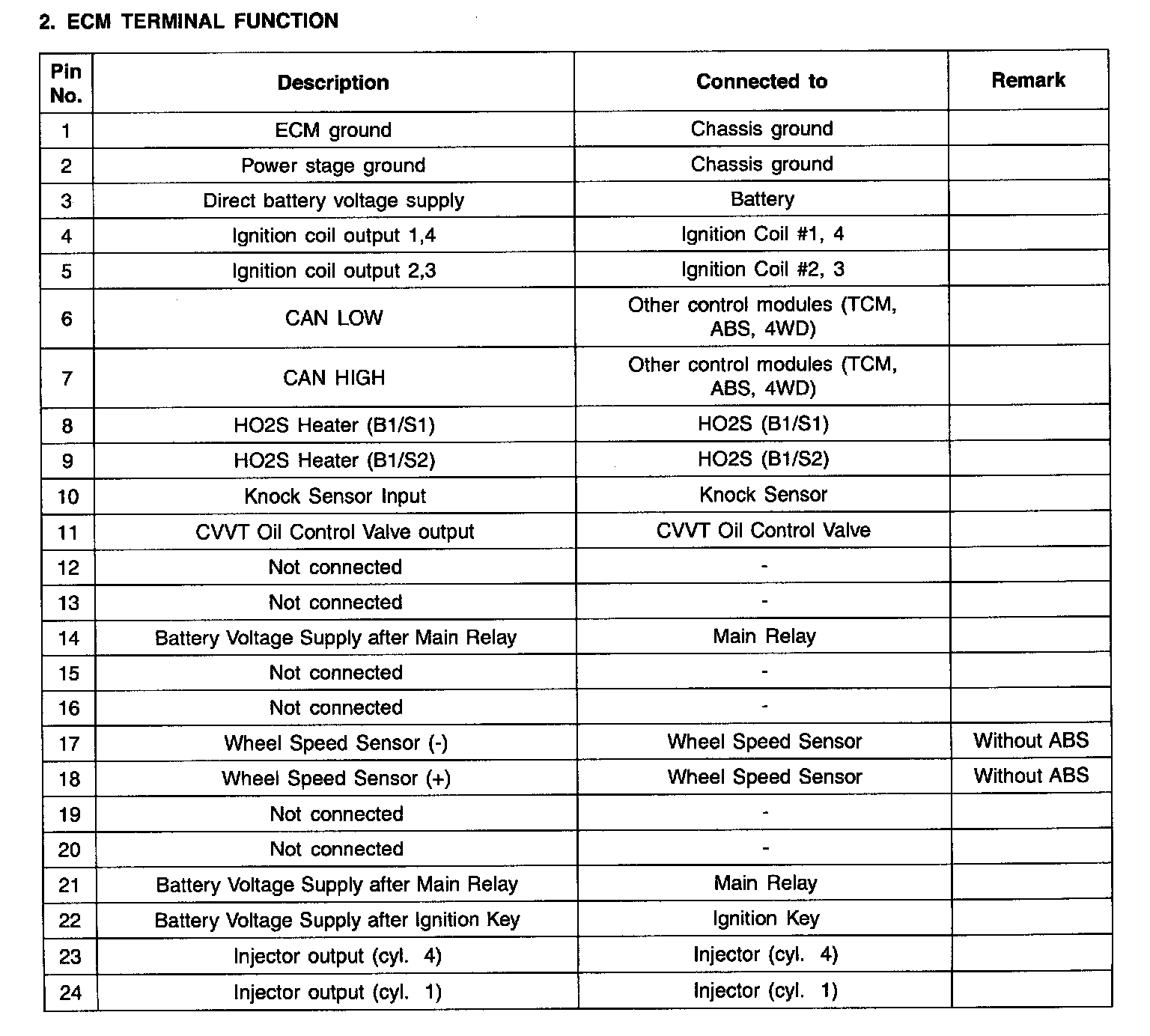

ECM Terminal Function (Part 1):

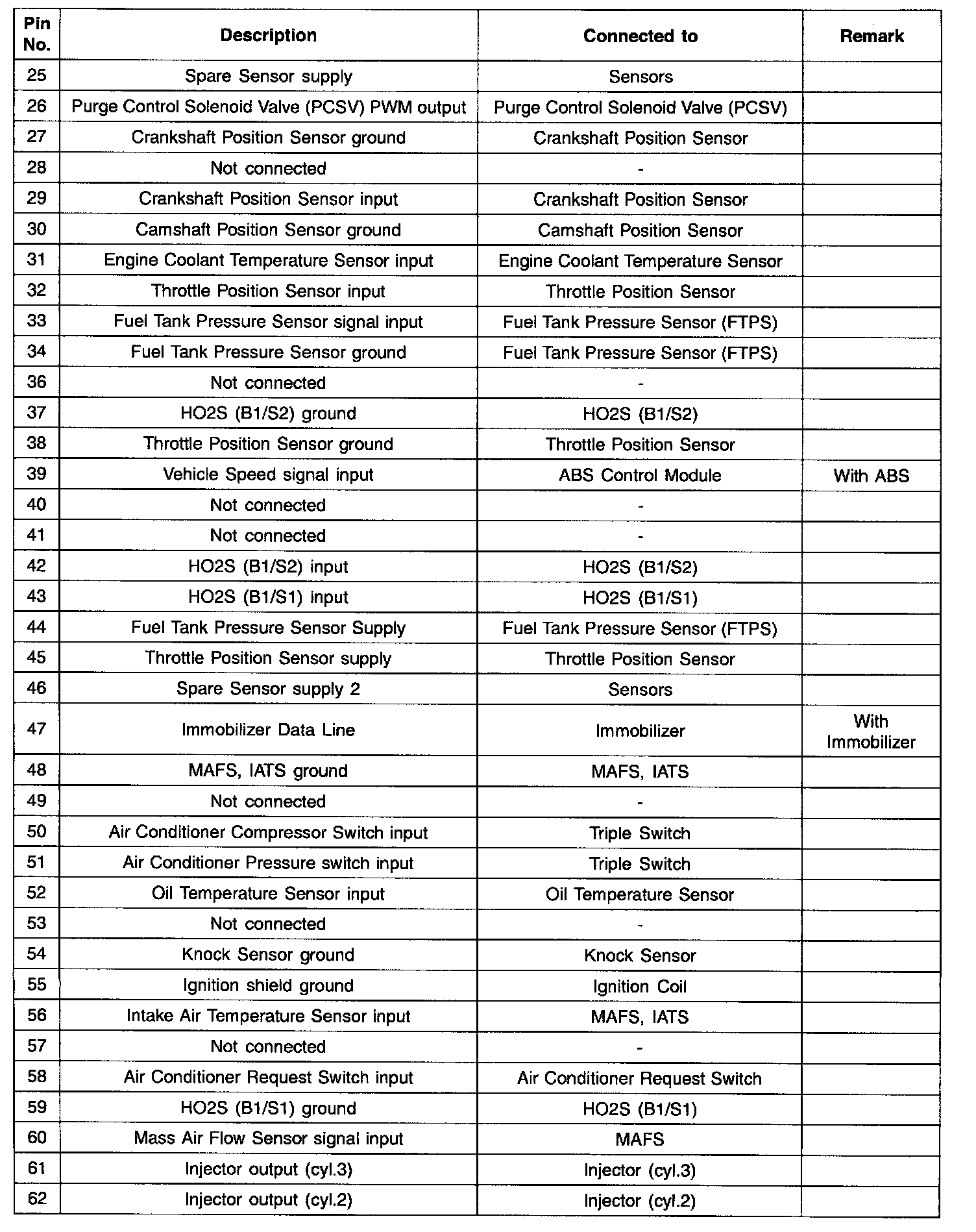

ECM Terminal Function (Part 2):

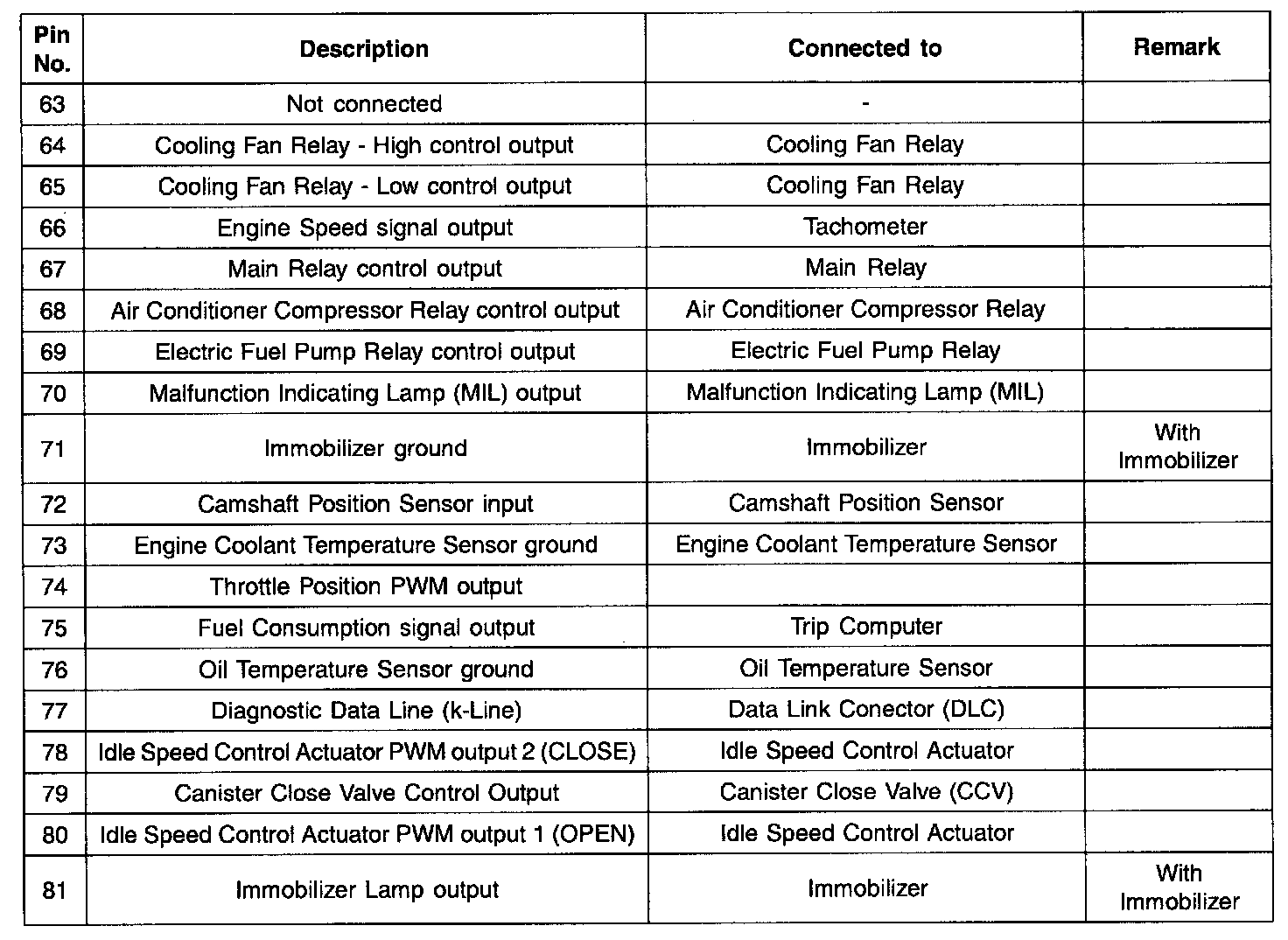

ECM Terminal Function (Part 3):
ECM TERMINAL INPUT/OUTPUT SIGNAL

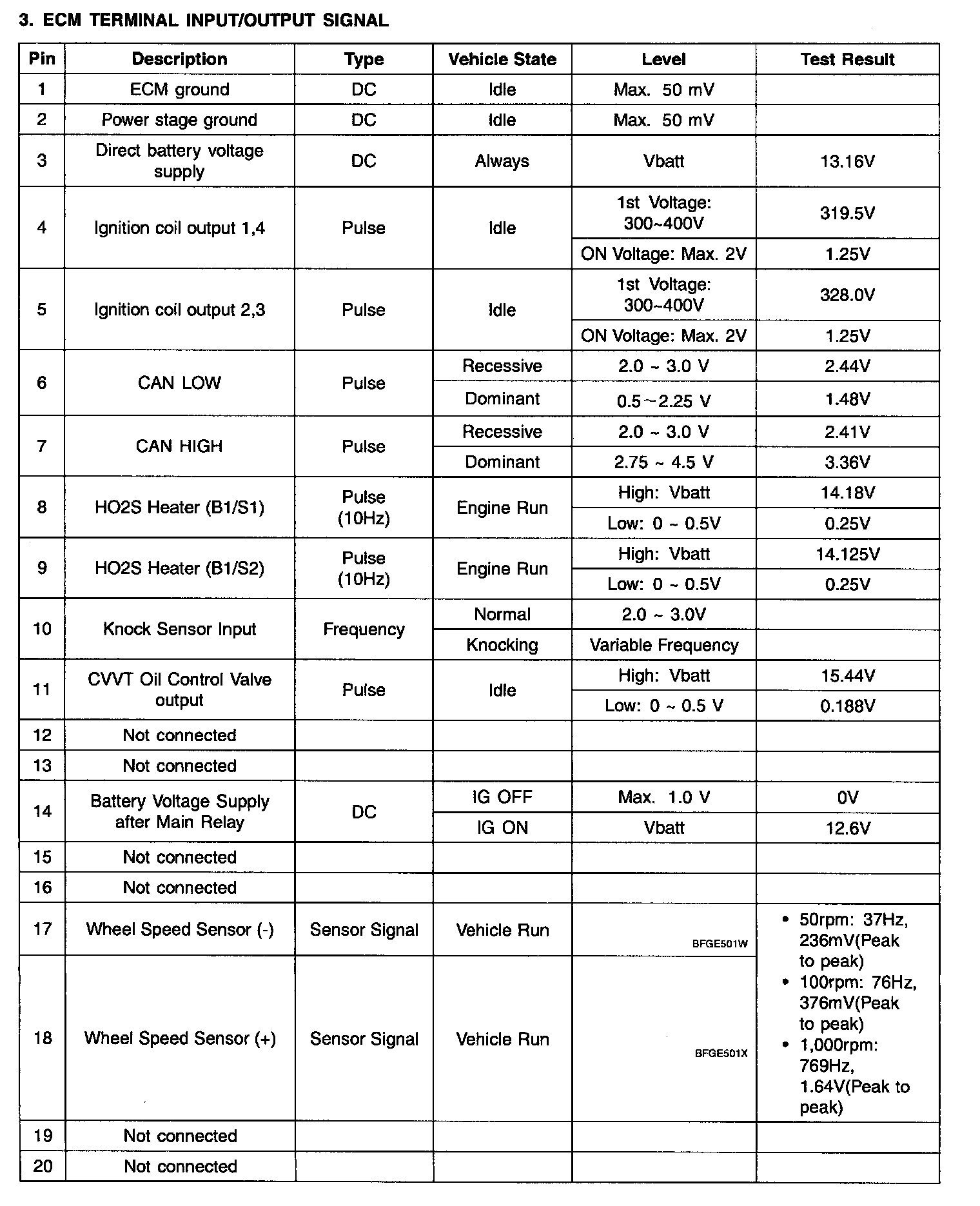

ECM Terminal Input/Output Signal (Part 1):

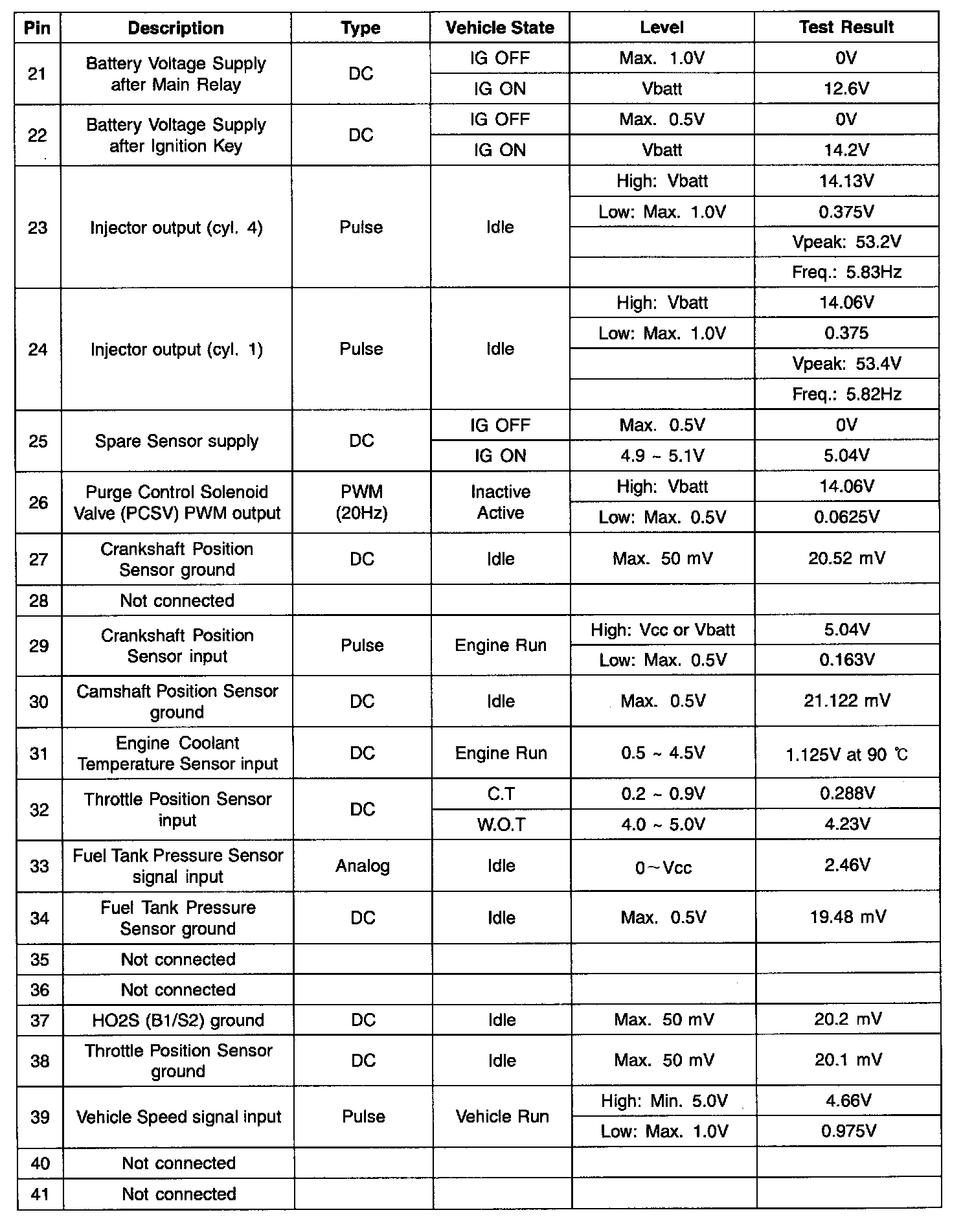

ECM Terminal Input/Output Signal (Part 2):

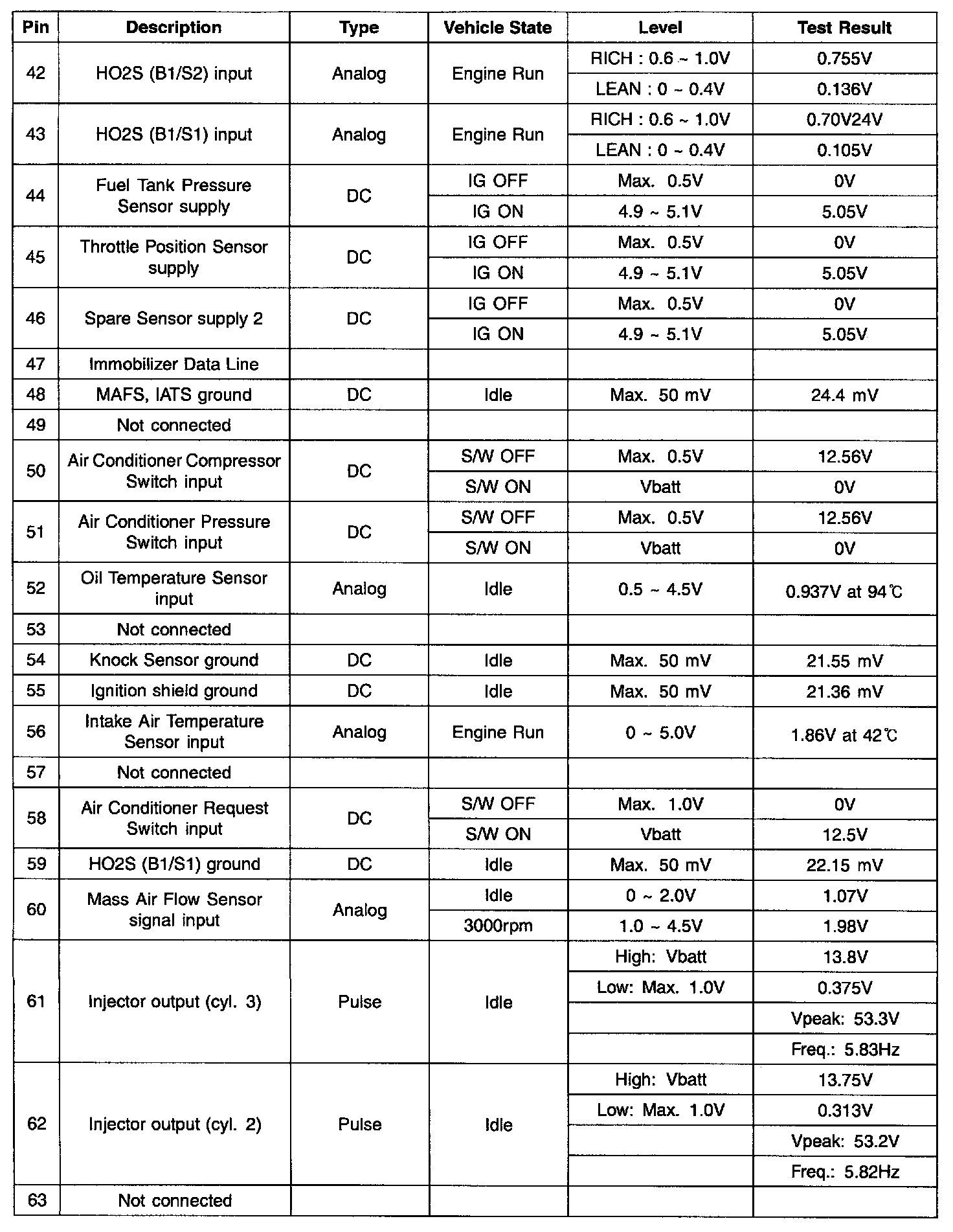

ECM Terminal Input/Output Signal (Part 3):

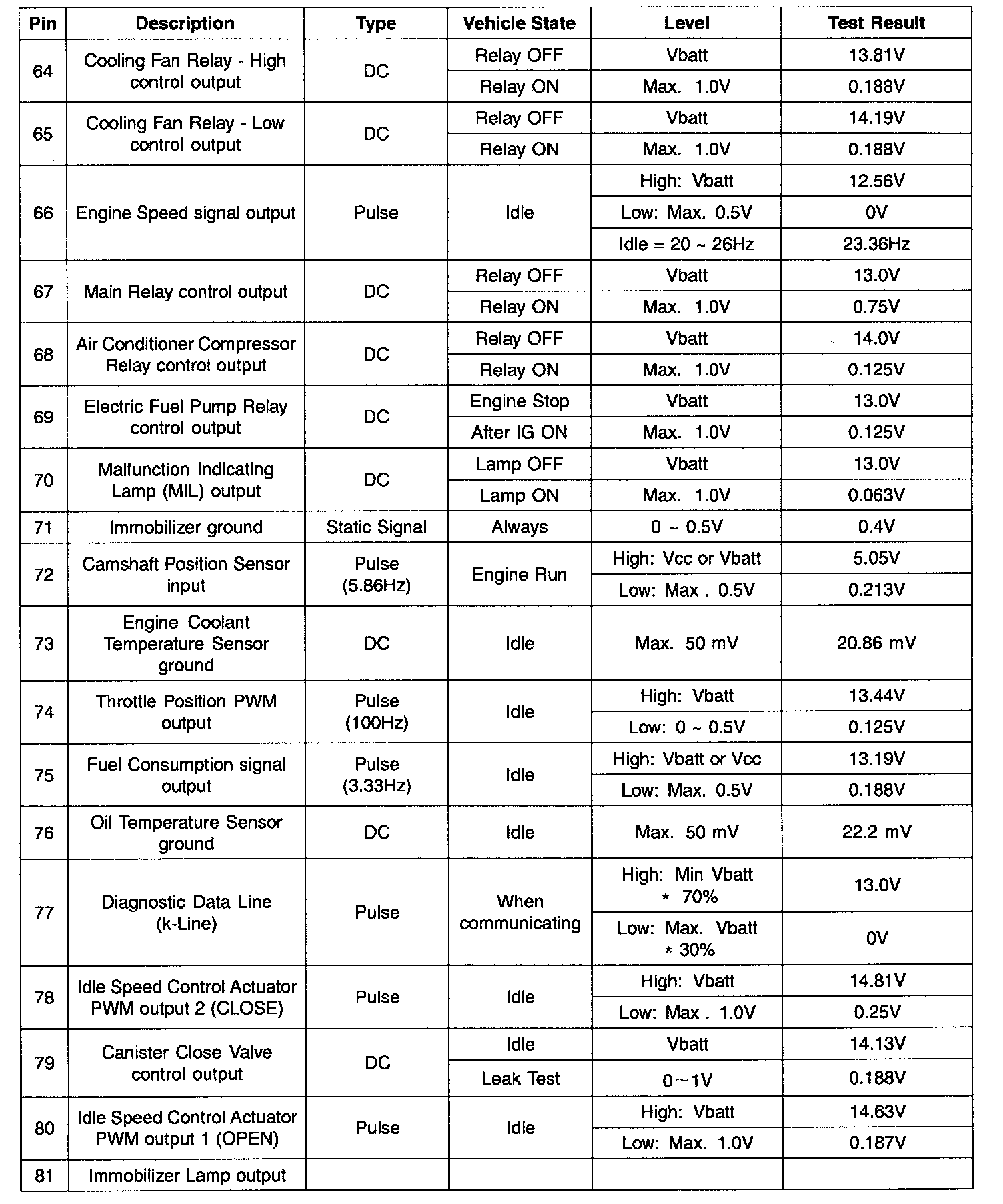

ECM Terminal Input/Output Signal (Part 4):
