Axle Shaft

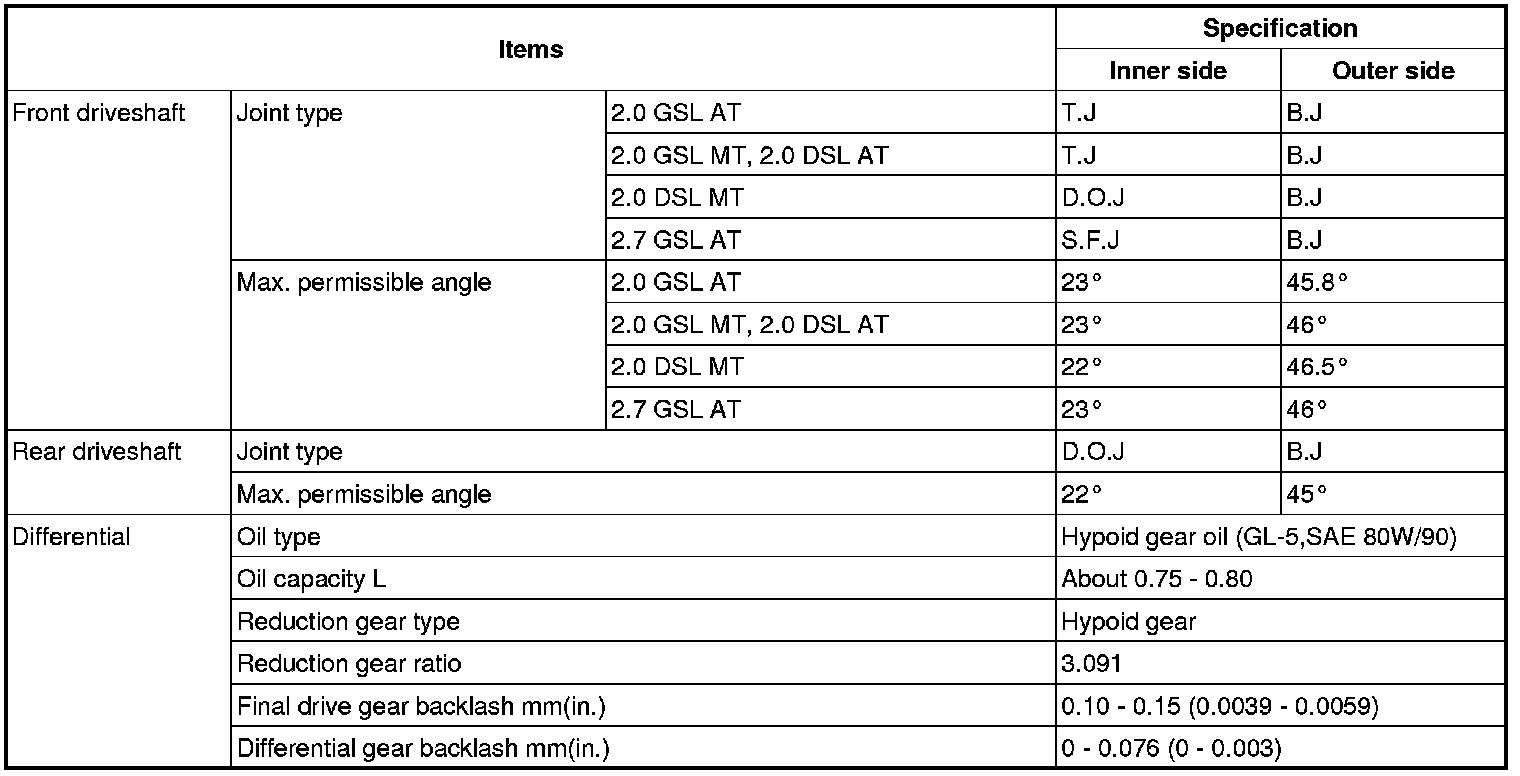

Specifications





B.J : Birfield Joint
D.O.J : Double Offset Joint
T.J : Tripot Joint

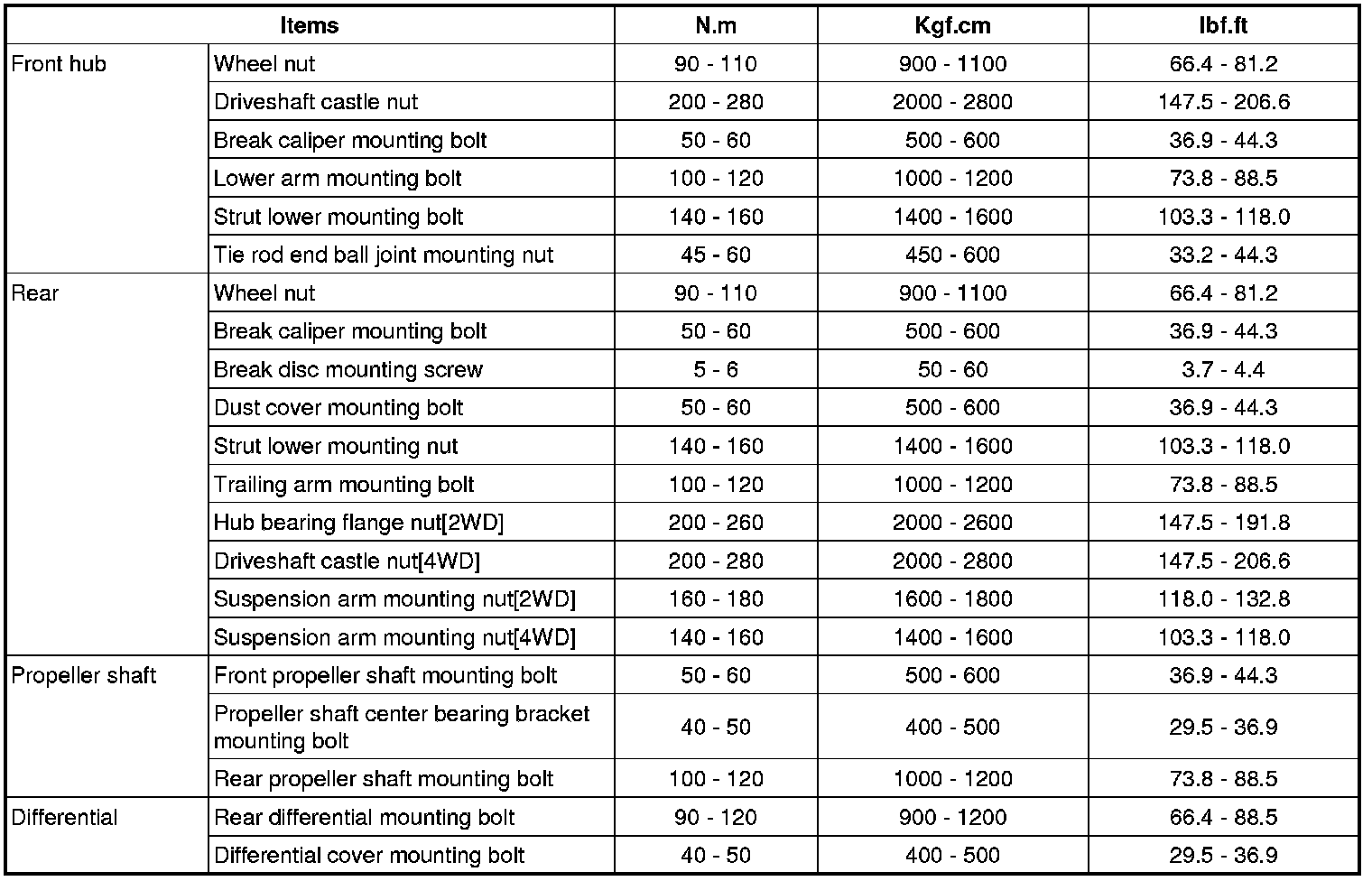

Tightening Torques





CAUTION:
Replace self-locking nuts with new ones after removal.
