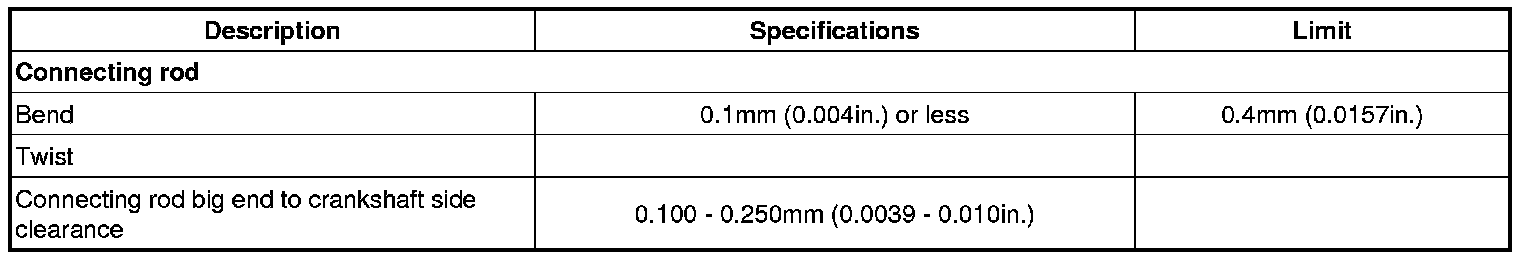

Connecting Rod





Connecting Rod






Standard end play 0.1 - 0.25 mm(0.004 - 0.010 in.)
Maximum end play 0.4 mm(0.016 in.)

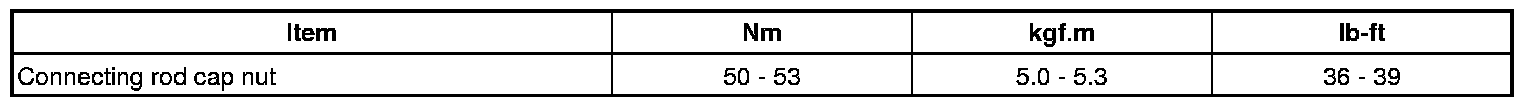

Connecting Rod Cap Nut
