Cylinder Block





Cylinder Block

Surface Variation

Flatness of cylinder block gasket surface
Standard Less than 0.03 mm (0.0012 in.)
Limit 0.05 mm (0.0020 in.)

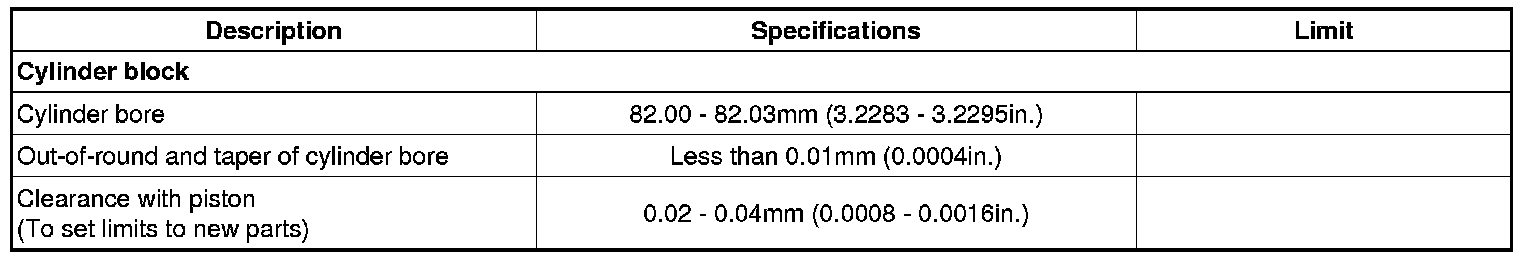

Cylinder Bore Diameter, Cylinder Taper, Cylinder Out of Round, Cylinder-to-Piston Clearance
