Valve Clearance

Valve Clearance

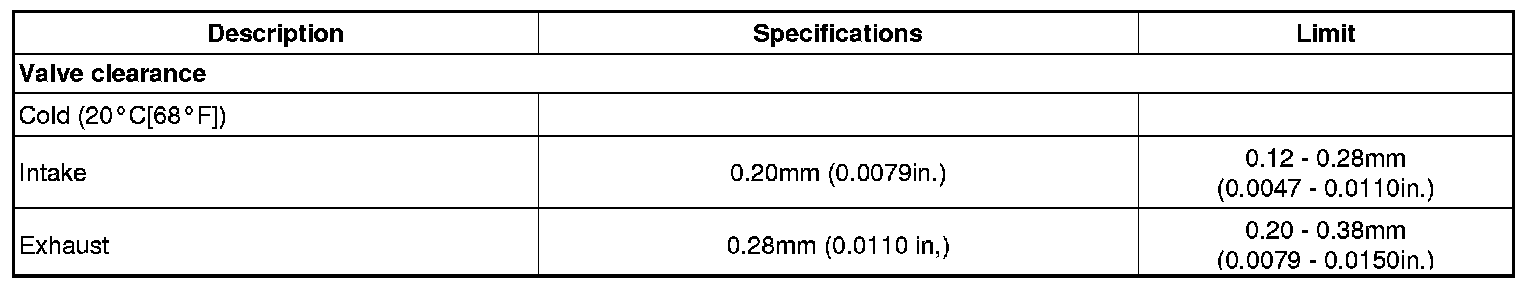

Valve clearance
Specification
Engine coolant temperature 20 °C [68 °F]
Intake 0.20 mm (0.0079 in.)
Exhaust 0.28 mm (0.0110 in.)
Limit
Intake 0.12 - 0.28 mm (0.0047 - 0.0110 in.)
Exhaust 0.20 - 0.38 mm (0.0079 - 0.0150 in.)

(Engine coolant temperature : 20°C)
[Specification]
Intake 0.20 mm (0.0079 in.)
Exhaust 0.28 mm (0.0110 in.)
[Limit] (After adjusting valve clearance)
Intake 0.17 - 0.23 mm (0.0067 - 0.0091 in.)
Exhaust 0.25 - 0.31 mm (0.0098 - 0.0122 in.)
