Camshaft Bearing Cap





Camshaft Bearing Cap

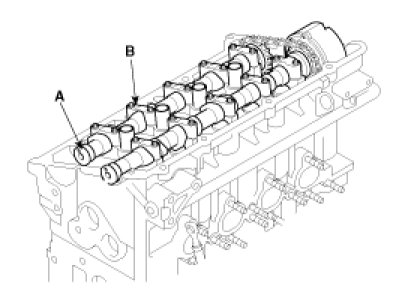

Install the camshafts(A) and bearing caps(B)
Tightening torque 14 - 15 Nm (1.4 - 1.5 kgf.m, 10 - 11 lb-ft)
